People Counting

Perimeter Protection example.jpg

IVSIconPeopleCounting.png People Counting is used to count people entering or existing a monitoring scenario, it will trigger device alarm if the configured entry/exit number is surpassed and can provide information reports
People Counting
Set Up Configure Alarm Trigger
Notifications
Set Up People Counting on your device using various interfaces.

> How To Set Up People Counting Alarm
Configure responses when the People Counting alarm is triggered, such as email notifications or alarm output.

> Configure Alarm Response
Receive notifications using the mobile app

> Set Up Notifications


Instructions

Icon for type SystemUI Old.pngSystemUI Old

Description

It is to make statistics of enter and leave people in the specific area of the image, and finally it comes out the statistics data, providing kinds of data reports such as day report, month report and year report. There are two ways to present: line chart and bar chart, providing data exporting function.

Note: People counting supports max half year data, it will operate auto overwrite according to hour when surpassing one year.

Video Instructions


Step by Step Instructions

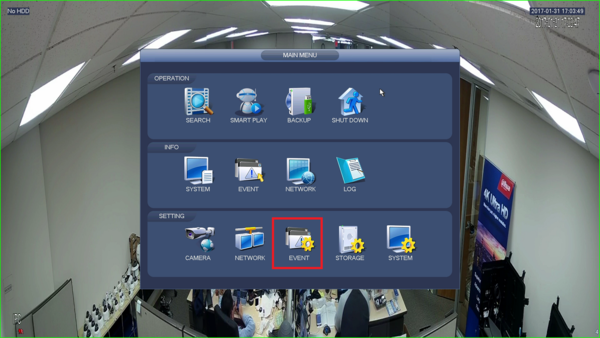

1. Go to Events.

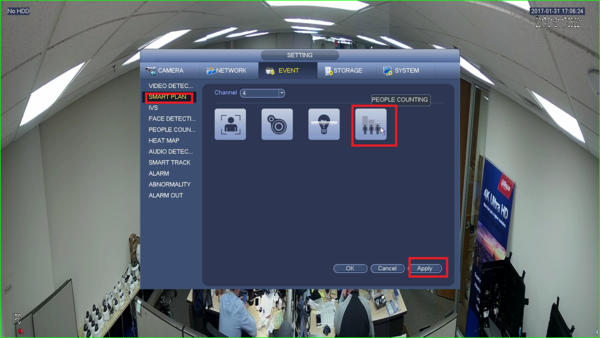

2. Under Smart plan, select people counting and click apply.

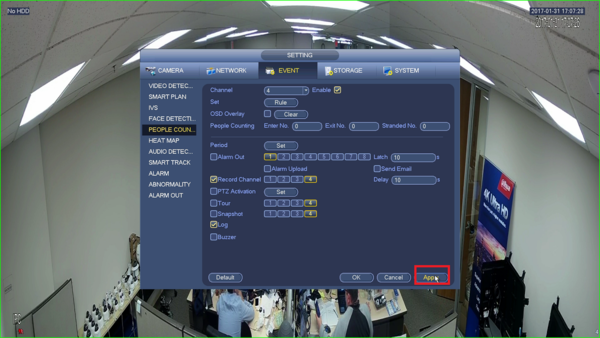

3. Under People counting, select enable then select Rules.


4. Click on number stat, draw rules, and then click ok.


5. Click apply.


Icon for type SystemUI New.pngSystemUI New

Description

This guide will show how to set up the People Counting feature in the SystemUI with NewUI

Prerequisites

  • Dahua device with People Counting feature

Video Instructions

Step By Step Instructions

1. From the Main Menu

Click AI

People Counting - SystemUI NewGUI - 1.jpg

2. Click Parameters

People Counting - SystemUI NewGUI - 2.jpg

3. Click Smart Plan

People Counting - SystemUI NewGUI - 3.jpg

4. Use the dropdown box to select the Channel

Click the People Counting symbol to enable the Smart Plan

People Counting - SystemUI NewGUI - 4.jpg

5. Click Apply to save

People Counting - SystemUI NewGUI - 5.jpg

6. Click People Counting

People Counting - SystemUI NewGUI - 6.jpg

7. Click to Enable the feature

People Counting - SystemUI NewGUI - 7.jpg

8. Click the Rule button to set the parameters for the People Counting

People Counting - SystemUI NewGUI - 8.jpg

9. Click the Trash icon to clear the default Area/Rule

People Counting - SystemUI NewGUI - 9.jpg

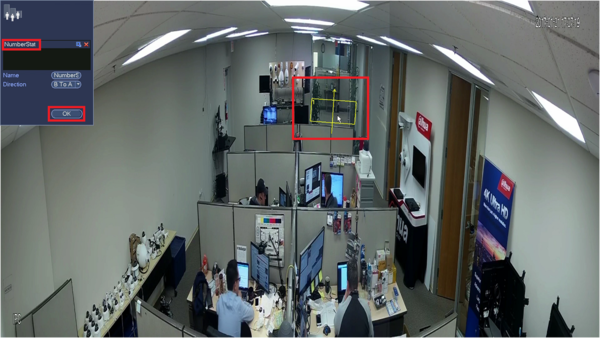

10. To begin drawing the detection area

Click Draw Area

People Counting - SystemUI NewGUI - 9-1.jpg

11. Left click inside the window to begin drawing the detection area


People Counting - SystemUI NewGUI - 10.jpg

Right click to complete the area and finish drawing

People Counting - SystemUI NewGUI - 11.jpg

12. To begin drawing the detection rule (trigger line for people counting)

Click Draw Rule

People Counting - SystemUI NewGUI - 12.jpg

13. Left click inside the window to draw the Rule. Right click to finish drawing. This line will be the trigger for counting people that cross it.

  • The arrow defines the direction of people entering the scene (Enter)
    • To create a downward facing arrow, create the Rule by starting on the left hand side then drag the mouse to the right
    • To create an upward facing arrow, create the Rule line by starting on the right hand side then drag the mouse to the left

People Counting - SystemUI NewGUI - 13.jpg

14. Click OK to save

People Counting - SystemUI NewGUI - 14.jpg

15. Click Apply to save

People Counting - SystemUI NewGUI - 15.jpg

Icon for type WebUI Old.pngWebUI Old

Description

It is to make statistics of enter and leave people in the specific area of the image, and finally it comes out the statistics data, providing kinds of data reports such as day report, month report and year report. There are two ways to present: line chart and bar chart, providing data exporting function.

Note: People counting supports max half year data, it will operate auto overwrite according to hour when surpassing one year.

Prerequisites

  • Internet Explorer
  • IP Address of Device
  • IVS capable devices
  • Current Firmware

Installation Requirements

IVS people counting Camera mounting 1.jpg

The reason this example works better is that the scene is not as complicated as a horizontal shot. This provides a stable and clear background to differentiate object detection (shown as a green box around the targets) from a static object. If the background is a complicated scene, like a horizontal camera shot outdoors, then the camera loses the efficiency of detecting a moving object. This results in the People Counting IVS rule (seen as a blue box) not reliably triggering. The camera should be mounted at least 9 feet above the target if using a 3.6mm lens. Using a camera with a varifocal lens can help create a better scene if mounting options are limited. Adjusting the image settings: contrast, B&W, and gamma can aid in getting better detection, but will reduce image quality. To assess issues with IVS compatibility between the camera and NVR, please update both devices to the most current firmware and factory reset the NVR, and use the hard reset button to reset the camera.

Height Requirements

1. Vari-focal (H > 2.8 meters): vari-focal device is recommended to make people counting statistics

2. Fixed focal (only for reference):

Resolution f(mm) H(m)
2MP 2.8 2.8
2MP 3.6 3

Coverage Width Requirements

It is recommended that the width of exit and entrance should be within 3 meters, it is advised to install several cameras to make people counting statistics for the entrance whose width is more than 3 meters.

Ceiling Installation Requirements

The device is installed right above the entrance and exit, it forms 90°vertically between lens angle and horizontal. It needs to adjust focal length for vari-focal device:

Resolution Shoulder width
1280*960 Approx. 280px
1920*1080 Approx.420px
2048*1536 Approx. 448px
2560*1440 Approx. 560px

Video Instructions

Step by Step Instructions

1.Log into device using the Web Service.

People Counting IE 1.jpg


2.Select Setting

People Counting IE 2.jpg


3. Click Event > Smart Plan

People Counting IE 2.1.jpg

4. Click the People Counting icon, it will highlight in color when select

People Counting IE 2.2.jpg

5. Click Save

People Counting IE 2.3.jpg


6. Click Event > People Counting

People Counting IE 3.jpg

7. The People Counting menu will appear. Start by switching the dropdown box to People Counting, checking the box to Enable, then click Save

People Counting IE 4.jpg

8. The default People Counting Area and Rule will appear. Click Draw Area to edit the focus area for People Counting


People Counting IE 5.jpg


9. The Area box will highlight yellow when it is editable. Start by clicking one of the corners of the default box and drag it the desired position.

People Counting IE 6.jpg

People Counting IE 7.jpg



10. Continue with the remaining corners of the box until the desired focus area is created. Click Save

People Counting IE 8.jpg


11. You can draw a custom area by Clicking 'Clear' then clicking inside the video frame to draw the object.

People Counting IE 8-1.jpg

People Counting IE 8-2.jpg

People Counting IE 8-3.jpg

People Counting IE 8-4.jpg

Click Save to save the custom area

12. The arrow shows the area and the direction the People Counting rule will follow. To create a custom rule start by clicking Draw Rule

People Counting IE 9.jpg


13. Similar to the Area, you can click to drag the default line or click Clear to draw a custom Rule line. This line will be the trigger for counting people that cross it.

People Counting IE 10.jpg

14. Click inside the video frame to draw the Rule line. The arrow defines the direction of people entering the scene

People Counting IE 11.jpg

To create a downward facing arrow, create the Rule by starting on the left hand side then drag the mouse to the right

People Counting IE 12.jpg


To create an upward facing arrow, create the Rule line by starting on the right hand side then drag the mouse to the left

People Counting IE 13.jpg

Click Save once the Rule line has been created.


15. Once the Area / Rule have been defined for the People Counting, the parameters of the rule can be configured:

People Counting IE 14.jpg


  • Sensitivity
  • Max Height
  • Min Height
  • Period
  • OSD - On Screen Display - click to enable an On Screen Display of the active People Counting rule - Enter Number and Leave Number can be enabled.
  • Flowrate Alarm
  • Record
  • Relay-out
  • Send email
  • Snapshot


16. Click Calibration Config to adjust installation height and and angle settings for the camera.

People Counting IE 15.jpg

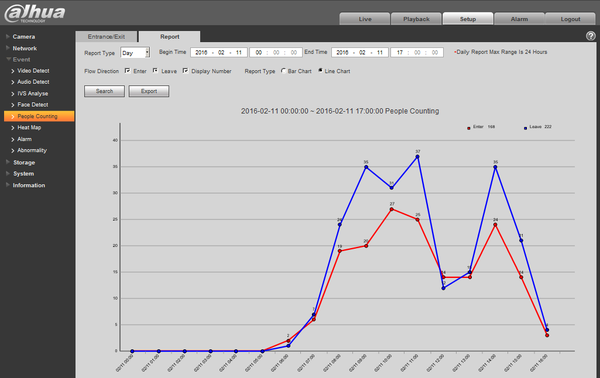

Line Chart

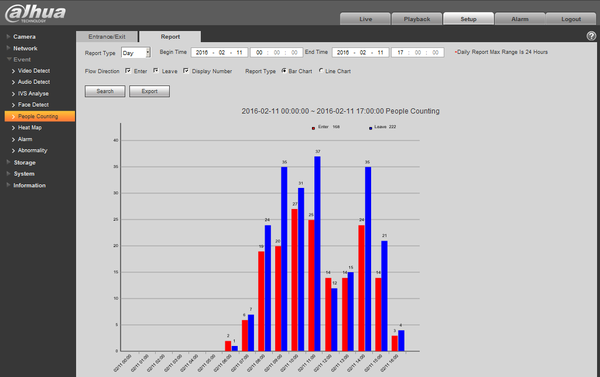

Bar Chart


Operation Steps:

  1. Enter report interface, select report type, such as day report, month report and year report.
  2. Select the time of statistics report.
  3. Select people counting direction of statistics and ways to present of the report including bar chart or line chart.
  4. Click Search button to view the report presentation.
  5. Click export to save report as CSV format or picture format.

Icon for type WebUI New.pngWebUI New

Description

This guide will show how to set up the People Counting feature in the WebUI with NewUI

Prerequisites

  • Dahua device with People Counting feature

Video Instructions

Step By Step Instructions

1. Enter the IP of the device in a browser

Enter username and password

Click Login

People Counting - WebUI New UI - 1.jpg

2. Click AI

People Counting - WebUI New UI - 2.jpg

3. Click Parameters

People Counting - WebUI New UI - 3.jpg

4. Click Smart Plan

People Counting - WebUI New UI - 4.jpg

5. Use the dropdown box to select the Channel

Click the People Counting symbol to enable the Smart Plan

People Counting - WebUI New UI - 5.jpg

6. Click OK to save

People Counting - WebUI New UI - 6.jpg

7. Click People Counting

People Counting - WebUI New UI - 7.jpg

8. Check the box to enable People Counting

People Counting - WebUI New UI - 8.jpg

9. The default rule will appear in the window

Click the Clear buttons to remove the default Area and Rule

People Counting - WebUI New UI - 9.jpg

10. Click Draw Area to create the detection area

People Counting - WebUI New UI - 10.jpg

11. Left click inside the window to begin drawing the detection area

Right click to complete the area and finish drawing

People Counting - WebUI New UI - 11.jpg

12. Click Draw Rule

People Counting - WebUI New UI - 12.jpg

13. Left click inside the window to draw the Rule. This line will be the trigger for counting people that cross it.

  • The arrow defines the direction of people entering the scene (Enter)
    • To create a downward facing arrow, create the Rule by starting on the left hand side then drag the mouse to the right
    • To create an upward facing arrow, create the Rule line by starting on the right hand side then drag the mouse to the left

People Counting - WebUI New UI - 13.jpg

14. Click OK to save all settings

People Counting - WebUI New UI - 14.jpg
