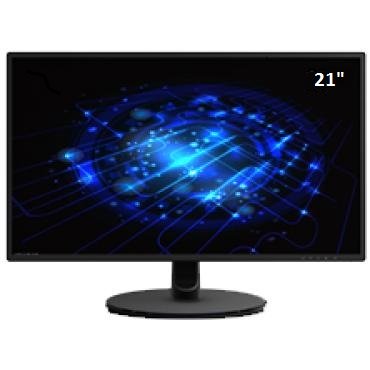

DHL22-F600


Features

  • Full HD 1920*1080 resolution
  • 1ch HDMI & 1ch VGA input
  • Support 1ch audio input
  • Built-in speaker

Specifications

Model DHL22-F600
System
Diagonal 20.7"(16:9)
Backlight WLED
Resolution 1920×1080
Luminance(Standard) 200cd/㎡
Contrast 600:1
Angle of view 130°/178° (vertical / horizontal)
Response Time(Grey Scale) 4ms
Video & Audio Interafce
PC Signal VGA(D-Sub)×1
Digital Signal HDMI×1(1920×1080),downward compatible
Audio Input Audio Input x 1 (3.5mm)
Audio Output Speaker
General
Power Consumption (Standard) 23W
Power Consumption (Standby) ≤0.5W
Power Supply AC100-240V~(+/-10%), 50/60 Hz
Bezel Color Black
Gross Weight 2.5±0.3kg
Unit Dimensions(mm) 490.30×292.30×48.30
Installation Mode Equipped with pedestal
VESA Standard VESA 100mm*100mm
Working Temperature 0℃~40℃
Working Humidity 10%~90%
Stock Temperature -20ºC~60ºC
Accessory VGA cable, Power cable
