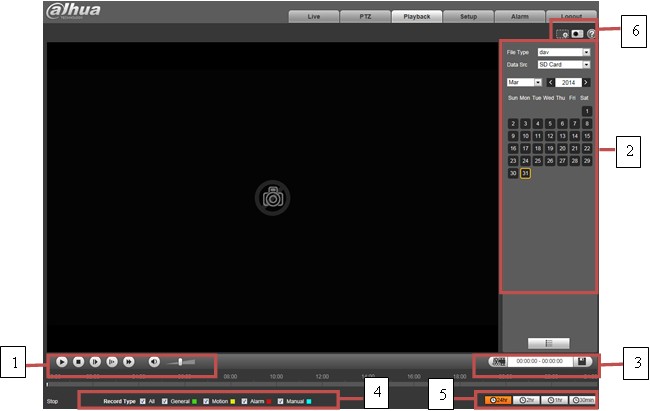

Playback Menu


There are four sections:

1: Function of play

2: Playback file

3: Play time cut

4: Record type

5: Progress bar

6: Assistant function

Playback Toolbar


Parameter

Function

1. Play

When you see this button, it means pause or not played record. Click on this button, switch to normal play status.

2. Stop

Click this button to stop playing.

3. Play by frame

Click on this button to go to next frame.

Note:

You shall pause record when you use this function.

4. Slow

Click on this button to play slowly.

5. Quick

Click on this button to play quickly.

6. Silent

When this button displays, it means audio is silent. Click on this button to switch back to normal.

7. Volume

Click on left mouse to adjust volume.

8. Fisheye

Click this button and fisheye device can adjust display mode according to different installation mode during the process of playback.

Playback Calendar


Parameter

Function

File Type

  • Select “dav”, as video playback.
  • Select “jpg” as picture playback.

Data Source

Default is SD card.

Playback Bar

IPCPlaybackBar.jpg Step 1. Click on data in blue, time axis displays record file progress bar in color. While, green represents normal record, yellow represents motion detect record, red represents alarm record, and blue represents manual record.

Step 2. Click on certain time on progress bar, playback starts from this time.

Step 3. Click on file listIPCPlaybackMoreInfo.jpg , select date file will be displayed in list.

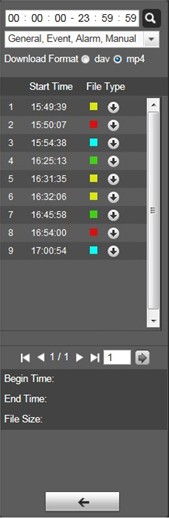

Event Bar


1. Click on data in blue, time axis displays record file progress bar in color. While, green represents normal record, yellow represents motion detect record, red represents alarm record, and blue represents manual record.

2. Click on certain time on progress bar, playback starts from this time. See Figure 4- 4.

3. Click on file listIPCPlaybackMoreInfo.jpg, select date file will be displayed in list.

4. Double click on file in list, playback this file and display file size, start time and end time.


Parameter

Function

IPCPlaybackSearchIcon.jpgSearch

It means records within searched start time and end time on the date.

Record Download Format

There are two formats:  dav, mp4.

IPCPlaybackDownloadIcon.jpgDownload

  • Record type is “dav”, click on download button to download file to local.
  • Record type is “mp4”, click on download button and download file to path in Ch 5.1.2.5.

Note:

System does not support download and playback of MP4 file.

IPCPlaybackBackIcon.jpgBack

Click on back button to go to calendar interface.

Playback Cut


Note:Playback cut function will automatically pause playing record as playback cut and playback cannot be at the same time.

Step 1. Click on start time to cut on time axis. This time must be within progress bar range.

Step 2. Move mouse to cut icon IPCPlaybackCutIcon.jpg. You will be ask to select start time. Click on cut icon IPCPlaybackCutIcon.jpg to finish cutting.

Step 3. Click on playback cut end time on time axis. This time must be within progress bar range.

Step 4. Move mouse to cut icon IPCPlaybackCutIcon.jpg, you will be asked to select end time. Click on cut icon IPCPlaybackCutIcon.jpg again to finish cutting.

Step 5. Click on Save button to save file.

Record Type


After checking record file type, only selected file will be displayed in progress bar and file list. Users can also select the record type to be displayed via the drop down box which is above the file list.

Progress Bar


Parameter

Function

24 hours

Click on it, means video in past 24 hours.

2 hours

Click on it, means video in past 2 hours.

1 hour

Click on it, means video in past 1 hour.

30 min

Click on it, means video in past 30 min.

Assistant Function


Parameter

Function

 Zoom in

  • Click on it, video in playback status if is in original size, user can zoom in any area, If it is not in its original size, click on mouse to restore its original size.
  • Click on this button, you can scroll to zoom in.

 Snapshot

Click on this button, you can snapshot video under playback status. Snapshot will be saved to path in Ch 5.1.2.5.
