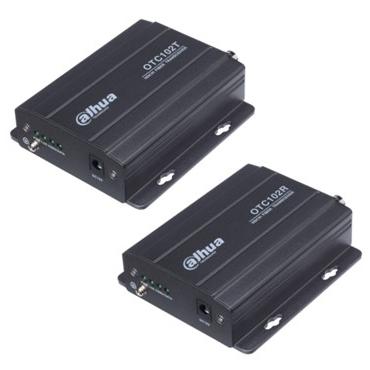

OTC102


Features

  • Lossless non-compression real time transmission
  • Auto recognition of input video format as 25/30/50/60fps@720P & 25/30fps@1080P
  • UPnP, easy installation
  • 4 LED indicators
  • Wide-range temperature application: -40ºC ~75ºC

Compatible Body Type

  • X

Compatible IP Cameras

  • X

Compatible HD-CVI Cameras

  • X

Specifications

Model DH-OTC102T/R
Optical Index
Physical Port FC port, Single-mode fiber
Transmission Distance 0-20km
Input/ Output Wave Length Transmitter(OTC102T):1310nm transmit 1550nm receive;
Receiver(OTC102R):1550nm transmit 1310nm receive
HDCVI Video Index
Transmitter Input Level >500mVp-p
Receiver Output Level 1Vp-p
Input Auto Cable Balance 1080p:75-5 coaxial support 300m
720p :75-5 coaxial support 500m
Transmitter Input Relection Loss >15dB
Input/Output Impedance 75Ω
Physical Port BNC port
Input/ Output Port Number 1 ch
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
HDCVI Coaxial Control Data Index
Work Mode Half-dual
Error Rate <10-9
Baud Rate 1200-9600bps
Other
Indicator Light linker, power, data, video source indicator
Power DC12V 1A
Power Consumption ≤5W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 200g
Dimension 104.6mm×96.2mm×29.5mm
Installation Wall mount
