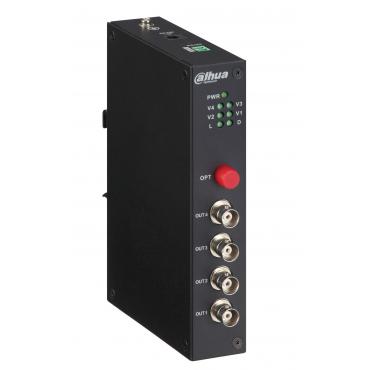

PFO2410


Features

  • High definition, real-time
  • Support HDCVI video format 720p/25、720p/30、720p/50、720p/60、1080p/25、1080p/30
  • UPnP, easy installation
  • Metal plate is used for the structure, fully enclosed dustproof design
  • Industrial wide temperature design

Compatible Body Type

  • X

Compatible IP Cameras

  • X

Compatible HD-CVI Cameras

  • X

Specifications

Model PFO2410T PFO2410R
Physical Port FC(Single-mode fiber)、4*BNC、1*RS485
Transmission Distance 0-20km
Input/ Output Wave Length 1310nm / 1550nm 1550nm / 1310nm
Input Auto Cable Balance 1080p:75-5 coaxial support 300m
720p :75-5 coaxial support 500m
Input/Output Impedance 75Ω
Sampling Bandwidth 10bit
Power DC12V
Power Consumption <6W <4W
Application Humidity 10%-90%
High&Low temperature ﹣40℃~70℃
Weight 480g
Dimension(W×D×H) 100mm×150mm×30mm
Installation DIN rail
