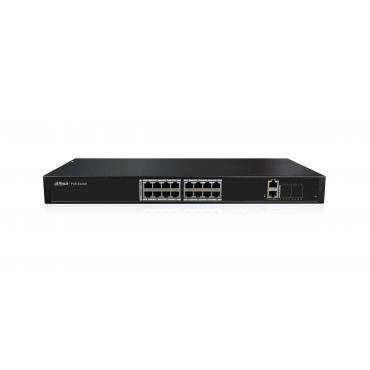

PFS4018-16P-250


Features

  • Two-layer network management PoE switch
  • Support IEEE802.3af, IEEE802.3at standard
  • Support spanning tree protocol STP/RSTP
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
  • Support one-key recovery of IP address & user password

Compatible Body Type

  • X

Compatible IP Cameras

  • X

Compatible HD-CVI Cameras

  • X

Specifications

Model PFS4018-16P-250
Ethernet port 2*10/100/1000 Base-T、
16*10/100 Base-T(PoE power supply)
PoE  power consumption Each power ≤30W,Total≤250W
PoE protocol IEEE802.3af、 IEEE802.3at
Exchange mode Store & forward
Application Humidity 10%-90%
Power AC 100~240V
High&Low temperature ﹣10℃~55℃
Weight 2.69kg
Dimension(W×D×H) 442mm×124mm×44.5mm
