How To Add DHI-VTO4202F-P-S2 To DSSPro Via Configtool

Description

This article will go over DHI-VTO4202F-P-S2 setup to DSS Pro using Configtool

DSS Pro will be acting as the SIP server

Pre-requisites

Video Instructions

Step by Step Instructions

Configurating VDP devices using Configtool

1. After all devices are initialized go to Building Config

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-1.png

2. Go to Global Parameter

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-2.png

3. Global Parameters

Global Parameters
Center Number = 888888 Sever Type = Express/Dss
Server Address = Enter DSS Pro IP Address Server Port = 5080
Server Username - Enter the Username used on DSS Pro Server Password - Enter the Password for the DSS Pro User
Sip Domain = VDP Registered PWD = Leave Default
VTO Username = Enter VTO Username VTO Password = Enter VTO Password
VTH Username = Enter VTH Username (admin by default) VTH Password = Enter VTH Password

Enter the proper information and click on OK to proceed

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-3.png

4. Click on Add Node to create a project

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-4.png

5. In this guide we have 1 VTO and 2 VTHs so we are checking the Main VTO and telling it we have 2 Rooms (VTHs) with 0 extensions. Click on OK

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-5.png

6. Associate the VTO's Serial Number to the Project's Main VTO Entry and click on Association

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-6.png

7. Do the same to the VTHs. Make sure to do them one at a time

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-7.png

8. After completing the Associations, click on Association List

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-8.png

9. Check all the devices and the select Config. Configtool will handle the rest of the configurations

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-9.png

10. Devices will reboot and the configuration is complete

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-10.png

Adding Devices to DSS Pro

1. Go to DSS Pro Web Manager Portal

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-11.png

2. Login to DSS Pro Web Manager

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-12.png

3. Go to Device

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-13.png

4. Click on Add

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-14.png

5. Select Video Intercom as Device Category and enter the correct login information

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-15.png

6. Give the device a name and click on OK to finish adding. Repeat steps 4-6 for all devices

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-16.png

7. Open a new tab if you get a Building Enable Error for the VTO

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-17.png

8. Go to the Video Intercom Management module

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-18.png

9. Disable Building Enable

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-19.png

20. Click on Save and confirm the popup

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-20.png

21. All devices should show Online now

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-21.png

DSS Pro Client

1. Open and login to DSS Client, Go to the Video Intercom Module

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-22.png

2. Go to Call Management Icon

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-23.png

3. and click on the refresh icon to make sure all the VDP devices populate.

How to Setup DHI-VTO4202F-P-S2 to DSS Pro-24.png

Other Examples On Organization Tree Node (Building Config)

1. 1x Apartment VTO and 4x VTH, when the VTO call button is pressed it will call 2x VTH on apartment A and 2x VTH on apartment B. For example, we set 101 on the call button, and when we press that button that associates with room number 101 both VTHs on that apartment A will ring, but not apartment B.

Room Start Room 1 Number 2
Extension Start Extension 0 Number 2

2. 3x villa VTO and 3x VTH, when one of the VTO is pressed it will call 3x VTH. The second and third VTO will behave the same.
-Both Main VTO and Sub VTO needed to be checked in this scenario.
*If it still not working, try logging into both VTO and change villa number from 9901 to 101.

Room Start Room 1 Number 1
Extension Start Extension 0 Number 3

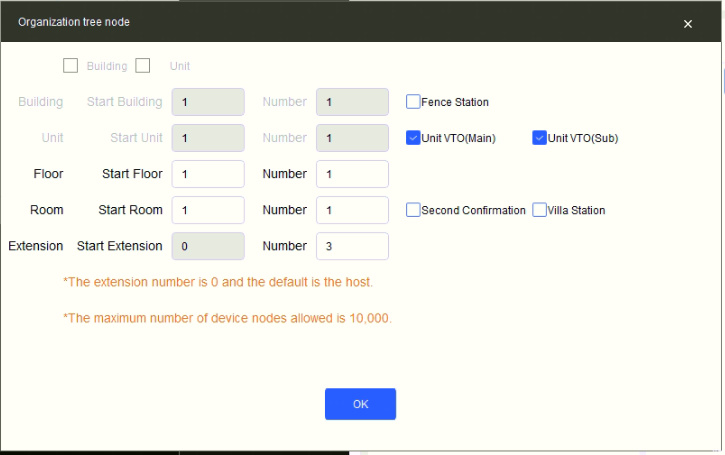

3 VTO and 3 VTH Organization Tree Node.png 3 VTO and 3 VTH Device Tree.png
