Difference between revisions of "NVR/Basic Setup/Add Dahua IP Camera"

(Add Dahua IP Camera to NVR)

(9 intermediate revisions by 3 users not shown)
Line 1: Line 1:

==Add Dahua IP Camera to NVR==

==Add Dahua IP Camera to NVR==
1. From the Main Menu Select Camera
+
===Description===
 +
Adding IP Cameras on NVR enables you to view the camera through the NVR remotely.

[[File:addipnvr1.png|500px]]
+
{{Template:OldGUI_Add_Dahua_Camera_to_Recorder}}

 +
[[Category:How to]]

2. Select Remote Device ➞ Select Device Search
+
[[Category:NVR]]

[[File:addipnvr2.png|500px]]
+
[[Category:IP Camera]]


You can also get to this selection by right clicking on any view which will show a sub menu for remote device search.



[[File:addipnvr7.png|500px]]





3. Check mark cameras to be added ➞ Select add.



[[File:addipnvr4.png|500px]]



You can also manual add cameras by selecting manual add



[[File:addipnvr5.png|500px]]



Input IP address of IP Camera, user name and password. Default user name and password is admin.



[[File:addipnvr6.png|500px]]



Depending on the model recorder you can also do a smart search from the main sub menu.



[[File:addipnvr8.png|500px]]



[[File:addipnvr9.png|500px]]


Latest revision as of 17:29, 10 March 2020

Add Dahua IP Camera to NVR

Description

Adding IP Cameras on NVR enables you to view the camera through the NVR remotely.


Prerequisites

  • IP Address of Camera if Manual Add
  • User Name and Password of Camera

Video Instructions

Step by Step Instructions

1. From the Main Menu Select Camera

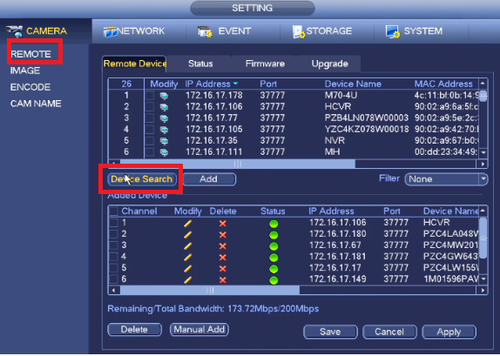

2. Select Remote Device ➞ Select Device Search

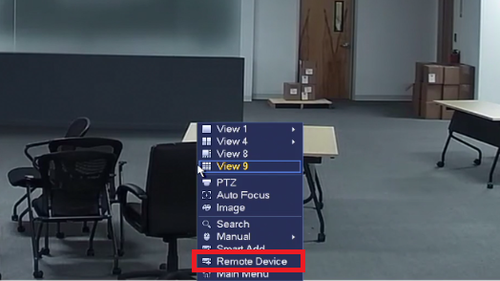

You can also get to this selection by right clicking on any view which will show a sub menu for remote device search.

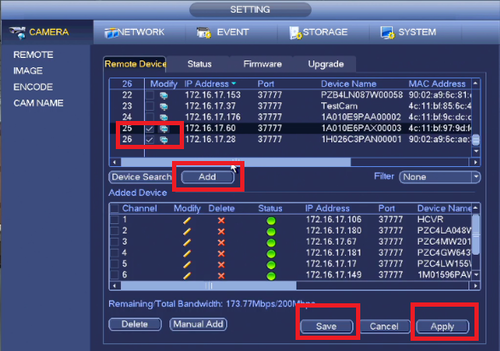

3. Check mark cameras to be added ➞ Select add.

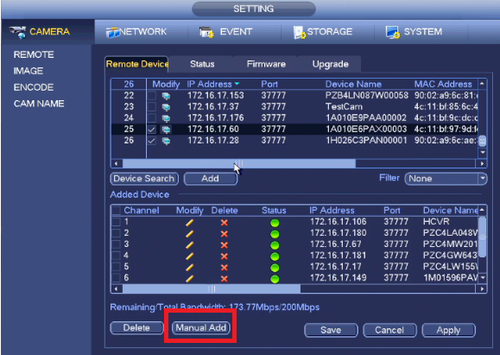

You can also manual add cameras by selecting manual add

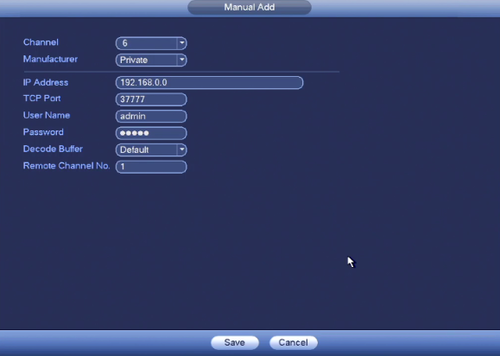

Input IP address of IP Camera, user name and password. Default user name and password is admin.

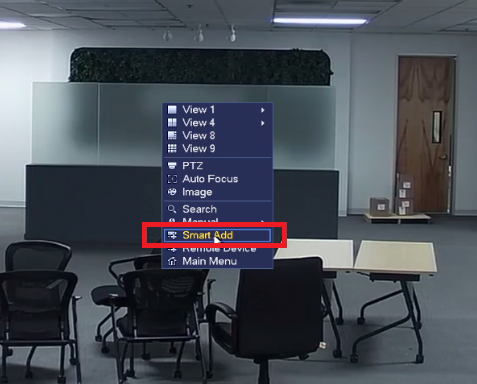

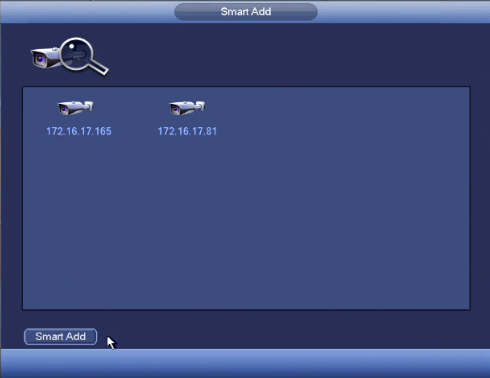

Depending on the model recorder you can also do a smart search from the main sub menu.
