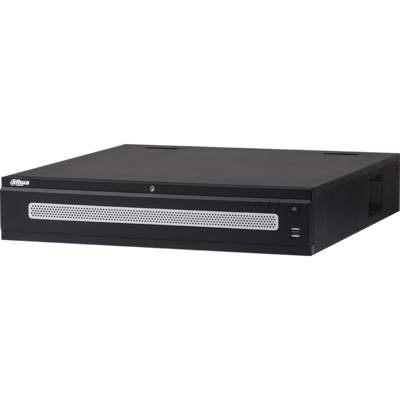

==DHI-NVR6A08-64-4KS2==
+
=DHI-NVR6A08-64-4KS2=
−
[[File:NVR6A08.jpg|right|400px]]
+
__NOTOC__
−

+
{| class="wikitable" style="width: 100%;"
−
[[file:PDFDownloadBanner.jpg|float|link=https://www.odrive.com/s/2a9d0cac-97e6-4427-91ea-0e147d12780d-5910b1a0|600px]]
+
|+DHI-NVR6A08-64-4KS2
−


−
[[file:PDF_banner.jpg|float|link=File:Datasheet_DHI-NVR6A08-64-4KS2_IVS_v001_002.pdf|600px]]

−
===Features===

−
* Intel Processor

−
* Max 64 IP Camera Inputs

−
* Max 384Mbps Incoming Bandwidth

−
* Up to 12MP Resolution for Preview and Playback

−
* Supports RAID 0/1/5/6/10

−
* Smart Tracking and Intelligent Video

−


−
===Compression===

−
<gallery mode=nolines widths=65px>

−
file:H264_Icon.png|link=Products_with_H.264|[[Products_with_H.264|Products with H.264]]

−
</gallery>

−
<!--

−
===Firmware===

−
{{Template:NVRFirmwareToolkit}}

−
-->

−
===Firmware===

−
====Firmware Update Instructions====

−
* [[Firmware/Update_Firmware_via_USB|Instructions for Firmware Update via USB]]

−
* [[Firmware/Update_Firmware_via_ConfigTool|Instructions for Firmware Update via ConfigTool]]

−
* [[Firmware/Update_Firmware_via_Web_Browser|Instructions for Firmware Update via Internet Explorer]]

−
====Firmware Update Download====

−
<html><iframe src="https://docs.google.com/spreadsheets/d/1ag1rC1sdDUKLJj-6JtcBo8gzFaN6v7IeflXspE5s5ng/pubhtml?gid=1682107795&range=AB13&amp;single=true&amp;widget=false&amp;headers=false&amp;chrome=false"

−
width="200px"

−
height="50px"

−
frameBorder="0">

−
</iframe></html>

−


−
===Specifications===

−
<div id="wraper"><div class="main clearfix"><div class="proDes"><div id="foot-seo-block"><div class="content tech-spec">

−
{| class="wikitable" border="0" width="100%" cellspacing="1" cellpadding="0" bgcolor="#dcdcdc"


|-

|-
−
| valign="top" bgcolor="#FFFFFF" width="139"|'''Model'''
+
!|Specifications
−
| valign="top" bgcolor="#FFFFFF" width="496"|'''DHI-NVR6A08-64-4KS2'''
+
!|Manual
 +
!|Firmware

|-

|-
−
| colspan="2" valign="top" bgcolor="#FFFFFF" width="634"|'''System'''
+
|{{Template:DHI_NVR6A08_64_4KS2_Specification_Template}}
 +
|<!--{{Template:NVR6and724-Manual}}-->
 +
|{{Template:DH_NVR6XX-4KS2}}

|-

|-
−
| valign="top" bgcolor="#FFFFFF" width="139"|Main Processor
+
|}
−
| valign="top" bgcolor="#FFFFFF" width="496"|Intel Processors
+

−
|-
+
[[File:NVR6A08.jpg|right|400px]]
−
| valign="top" bgcolor="#FFFFFF" width="139"|Operating System

−
| valign="top" bgcolor="#FFFFFF" width="496"|LINUX

−
|-

−
| colspan="2" valign="top" bgcolor="#FFFFFF" width="634"|'''Video& Audio'''

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|IP Camera Input

−
| valign="top" bgcolor="#FFFFFF" width="496"|64 channel

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Two-way Talk

−
| valign="top" bgcolor="#FFFFFF" width="496"|1channel Input, 1channel Output, RCA

−
|-

−
| colspan="2" valign="top" bgcolor="#FFFFFF" width="634"|'''Display'''

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Interface

−
| valign="top" bgcolor="#FFFFFF" width="496"|2 HDMI (up to 3840×2160), 1 VGA

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Resolution

−
| valign="top" bgcolor="#FFFFFF" width="496"|3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768

−
|-

−
| rowspan="2" valign="top" bgcolor="#FFFFFF" width="139"|Multi-screen Display

−
| valign="top" bgcolor="#FFFFFF" width="496"|The 1st screen: 1/4/8/9/16/25/36

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="496"|The 2nd screen: 1/4/8/9/16

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|OSD

−
| valign="top" bgcolor="#FFFFFF" width="496"|Camera title, Time, Video loss, Camera lock, Motion detection, Recording

−
|-

−
| colspan="2" valign="top" bgcolor="#FFFFFF" width="634"|'''Recording'''

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Compression

−
| valign="top" bgcolor="#FFFFFF" width="496"|H.264/MJPEG

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Resolution

−
| valign="top" bgcolor="#FFFFFF" width="496"|12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Record Rate

−
| valign="top" bgcolor="#FFFFFF" width="496"|256Mbps

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Bit Rate

−
| valign="top" bgcolor="#FFFFFF" width="496"|1~ 20Mbps

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Record Mode

−
| valign="top" bgcolor="#FFFFFF" width="496"|Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Record Interval

−
| valign="top" bgcolor="#FFFFFF" width="496"|1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

−
|-

−
| colspan="2" valign="top" bgcolor="#FFFFFF" width="634"|'''Video Detection & Alarm'''

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Trigger Events

−
| valign="top" bgcolor="#FFFFFF" width="496"|Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Video Detection

−
| valign="top" bgcolor="#FFFFFF" width="496"|Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Alarm Input

−
| valign="top" bgcolor="#FFFFFF" width="496"|16ch, low level effective, green terminal interface

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Relay Output

−
| valign="top" bgcolor="#FFFFFF" width="496"|8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface

−
|-

−
| colspan="2" valign="top" bgcolor="#FFFFFF" width="634"|'''Playback & Backup'''

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Playback

−
| valign="top" bgcolor="#FFFFFF" width="496"|128Mbps in Raid 5 mode<br />64Mbps in single HDD mode

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Search Mode

−
| valign="top" bgcolor="#FFFFFF" width="496"|Time/Date, Alarm, MD & Exact search (accurate to second)

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Playback Function

−
| valign="top" bgcolor="#FFFFFF" width="496"|Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Backup Mode

−
| valign="top" bgcolor="#FFFFFF" width="496"|USB Device/Network/Internal SATA burner/eSATA Device

−
|-

−
| colspan="2" valign="top" bgcolor="#FFFFFF" width="634"|'''Network'''

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Interface

−
| valign="top" bgcolor="#FFFFFF" width="496"|2 RJ-45 ports (10/100/1000Mbps)

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Ethernet Port

−
| valign="top" bgcolor="#FFFFFF" width="496"|2 Ethernet ports joint working or 2 independent 1000Mbps Ethernet ports

−
|-

−
| bgcolor="#FFFFFF" width="139"|Network Function

−
| valign="top" bgcolor="#FFFFFF" width="496"|HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Max. User Access

−
| valign="top" bgcolor="#FFFFFF" width="496"|128 users

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Smart Phone

−
| valign="top" bgcolor="#FFFFFF" width="496"|iPhone, iPad, Android, Windows Phone

−
|-

−
| colspan="2" valign="top" bgcolor="#FFFFFF" width="634"|'''Storage'''

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Internal HDD

−
| valign="top" bgcolor="#FFFFFF" width="496"|8 SATA III ports, up to 48TB

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|HDD Mode

−
| valign="top" bgcolor="#FFFFFF" width="496"|Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)

−
|-

−
| colspan="2" valign="top" bgcolor="#FFFFFF" width="634"|'''Auxiliary Interface'''

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|USB

−
| valign="top" bgcolor="#FFFFFF" width="496"|4 USB ports(3 USB2.0, 1 USB3.0)

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|eSATA

−
| valign="top" bgcolor="#FFFFFF" width="496"|1 eSATA port

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|RS232

−
| valign="top" bgcolor="#FFFFFF" width="496"|1 port, For PC communication& keyboard

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|RS485

−
| valign="top" bgcolor="#FFFFFF" width="496"|1 port, For PTZ control

−
|-

−
| colspan="2" valign="top" bgcolor="#FFFFFF" width="634"|'''General'''

−
|-

−
| bgcolor="#FFFFFF" width="139"|Power Supply

−
| valign="top" bgcolor="#FFFFFF" width="496"|AC110V~240V, 50~60Hz

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Power Consumption

−
| bgcolor="#FFFFFF" width="496"|<40W (Without HDD)

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|WorkingEnvironment

−
| bgcolor="#FFFFFF" width="496"|-10°C~+55°C/10%~90%RH/86~106kpa

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Dimension(W×D×H)

−
| valign="top" bgcolor="#FFFFFF" width="496"|486mm(with ears)×454.9mm ×91mm

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Weight

−
| valign="top" bgcolor="#FFFFFF" width="496"|9kg (without HDD)

−
|-

−
| valign="top" bgcolor="#FFFFFF" width="139"|Installation

−
| valign="top" bgcolor="#FFFFFF" width="496"|19” Rack-mounted

−
|}</div>

−
</div>

−
</div>

−
</div>


−






[[Category:NVR]]

[[Category:NVR]]

Latest revision as of 22:17, 3 August 2023

DHI-NVR6A08-64-4KS2

DHI-NVR6A08-64-4KS2
Specifications Manual Firmware

Build Date: 02-20-2023
