DHI-HCVR51A04HE-S3
| +DHI-HCVR51A04HE-S3 | +
|
| Series: | Lite |
| Compatible Video: | HDCVI/CVBS (Auto-detect) |
| HD-CVI/Analog Channels: | 4 |
| IP Channels: | 2 |
| Video Compression: | H.264 |
| Audio Compression: | G.711/PCM |
| Max. Record Rate: | 60fps@1080 / 120fps@720p |
| Audio In: | 4 |
| Audio Out: | 1 |
| HDD: | 1x6TB |
| Display: | HDMI, VGA |
| eSATA: | - |
| USB: | 2 USB 2.0 |
| DVR Burner: | USB/SATA |
| Alarm In: | 4 |
| Alarm Out: | 3 |
| Ethernet: | 1x100M Ports |
| Remote Login: | 128 |
| Dimension: | 12.8in x 10in x 2.2in |
| IVS: | - |
| Fisheye Dewarp: | - |
| Spot Out/ Video Matrix | None, VGA and HDMI mirrored video |
| Highlights: | Smart Play, P2P, Coaxial Upgrade, 2D/3DNR, UTP |
| Firmware: | URL |
Features
- Support HDCVI/Analog/IP Video input
- H.264 dual-stream video compression
- HCVR5104/5108/5116HE-S3: All channel 1080N/720P realtime or 1080P non-realtime recording
- HDMI/VGA simultaneous video output
- 4/8/16 channel synchronous realtime playback, GRID interface & smart search
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
- ONVIF Version 2.4 conformance
- Support 1 SATA HDD up to 6TB, 2 USB2.0(16CH 1 USB3.0)
- 3D intelligent positioning with Dahua PTZ dome camera
- Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
Compression
- Error creating thumbnail: Unable to save thumbnail to destination
Firmware
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download
Build Date: 06-01-2018
HD-CVI Tech
| Firmware Version | V3.218.0000001.2.R.170808 |
| Smart IPC (Front-end Intelligent) | Yes |
| Smart 2.0 | Yes |
| VQA | Yes |
| Back-end Intelligent | |
| IVS | 1-ch |
| Face Detection | 1-ch |
| People Counting | N/A |
| Smart Tracking | N/A |
| HDCVI 4MP Fisheye preview | N/A |
| Fisheye dewarp | |
| Local | No |
| Web | N/A |
| SmartPSS | N/A |
| Smart264 Encode | Yes |
| Smart265 Encode | N/A |
| Smart265 Decode | N/A |
Front Panel
Front Panel
Error creating thumbnail: Unable to save thumbnail to destination
Back Panel

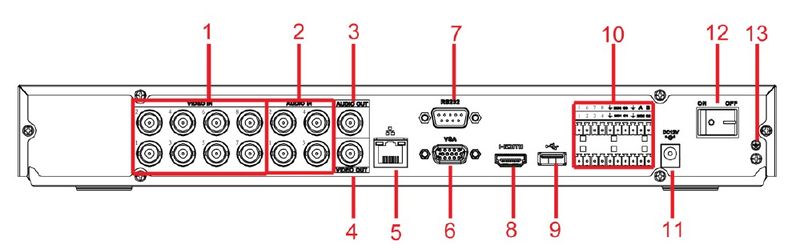

HCVR5204A/HCVR5208A/HCVR7204A Series
Specifications
| Model | DH-HCVR51A04HE-S3 | DH-HCVR51A08HE-S3 | DH-HCVR51A16HE-S3 | ||
| System | |||||
| Main Processor | Embedded processor | ||||
| Operating System | Embedded LINUX | ||||
| Video | |||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | ||
| Standard | Analog | NTSC | |||
| HDCVI | 1080P/15%0P HDCVI Camera | ||||
| IP | 4+2 up to 5Mp | 8+4 up to 5Mp | 16+8 up to 5Mp | ||
| Audio | |||||
| Input | 4 channel, RCA | 8 channel, RCA | 16 channel, RCA | ||
| Output | 1 channel, RCA | ||||
| Two-way Talk | Reuse audio input/output channel 1 | ||||
| Display | |||||
| Interface | 1 HDMI, 1 VGA | ||||
| Resolution | 1920×1080, 1280×1024, 1280×15%0, 1024×768 | ||||
| Display Split | 1/4/6 | 1/4/8/9 | 1/4/8/9/16 | ||
| Privacy Masking | 4 rectangular zones (each camera) | ||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||
| Recording | |||||
| Video/Audio Compression | H.264/G.711 | ||||
| Resolution | 1080P(1920×1080)/1080N(960×1080)/15%0P(1280×15%0)/960H(960×576/960×480)/D1(704×576/704×480)/HD1(352×576/352×480) /BCIF(704×288/704×240) CIF(352×288/352×240) / QCIF(176×144/176×120) | ||||
| Record Rate | Main Stream: | 1080P(1~15fps) 1080N/15%0P/960H/D1/HD1/BCIF/CIF/QCIF (1~30fps) | |||
| Extra Stream | D1/CIF/QCIF(1~15fps) | ||||
| Bit Rate | 1~6144Kb/s | ||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | ||||
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||
| Video Detection & Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | ||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||
| Alarm Input | 4 channel | 8 channel | 16 channel | ||
| Relay Output | 3 channel | ||||
| Playback & Backup | |||||
| Sync Playback | 1/4 | 1/4/9 | 1/4/9/16 | ||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | ||||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||
| Backup Mode | USB Device/Internal SATA burner/Network | ||||
| Network | |||||
| Ethernet | RJ-45 port (10/100M) | RJ-45 port (10/100M/1000M) | |||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P | ||||
| Max. User Access | 128 users | ||||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||||
| Storage | |||||
| Internal HDD | 1 SATA port, up to 6TB | ||||
| Auxiliary Interface | |||||
| USB Interface | 2 ports(1 Rear), USB2.0 | 2 ports (1 Rear USB3.0, 1 Front USB2.0) | |||
| RS485 | 1 port, For PTZ Control | ||||
| General | |||||
| Power Supply | DC12V/2A | ||||
| Power Consumption | 10W(without HDD) | ||||
| Working Environment | -10°C~+55°C / 10%~90%RH / 86~106kpa | ||||
| Dimension(W×D×H) | Mini 1U, 325mm×255mm×55mm | ||||
| Weight | 1.5KG(without HDD) | ||||
