USA/HDCVI/DVR/Pro/DHI HCVR72A08A S3
Contents
DHI-HCVR72A08A-S3
| Series: | Pro |
| Compatible Video: | HDCVI/CVBS (Auto-detect) |
| HD-CVI/Analog Channels: | 8 |
| IP Channels: | 4 |
| Video Compression: | H.264 |
| Audio Compression: | G.711/PCM |
| Max. Record Rate: | 240fps@1080 / 240fps@720p |
| Audio In: | 4 |
| Audio Out: | 1 |
| HDD: | 2x6TB |
| Display: | HDMI, VGA, SPOT optional |
| eSATA: | - |
| USB: | 1 USB 2.0, 1 USB 3.0 |
| DVR Burner: | USB/SATA |
| Alarm In: | 8 |
| Alarm Out: | 3 |
| Ethernet: | 1 Gigabit Ports |
| Remote Login: | 128 |
| Dimension: | 14.8in x 11.2in x 2.2in |
| IVS: | yes |
| Fisheye Dewarp: | - |
| POS: | - |
| Highlights: | Smart Play, P2P, Coaxial Upgrade, 2D/3DNR, UTP |
| Firmware: | URL |
Features
- Support HDCVI/Analog/IP Video input
- H.264 dual-stream video compression
- HCVR72A04/72A08/78A16A-S3: All channel 1080P realtime recording
- 4/8/16 channel synchronous realtime playback, GRID interface & smart search
- HDMI/VGA simultaneous video output
- Support 2 SATA HDDs up to 12TB, 2 USB2.0 (8/16CH 1 USB3.0)
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
- ONVIF Version 2.4 conformance
- 3D intelligent positioning with Dahua PTZ dome camera
- Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
Compression
- Error creating thumbnail: Unable to save thumbnail to destination
Firmware
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download
Build Date: 06-01-2018
Front Panel
Front Panel
Error creating thumbnail: Unable to save thumbnail to destination

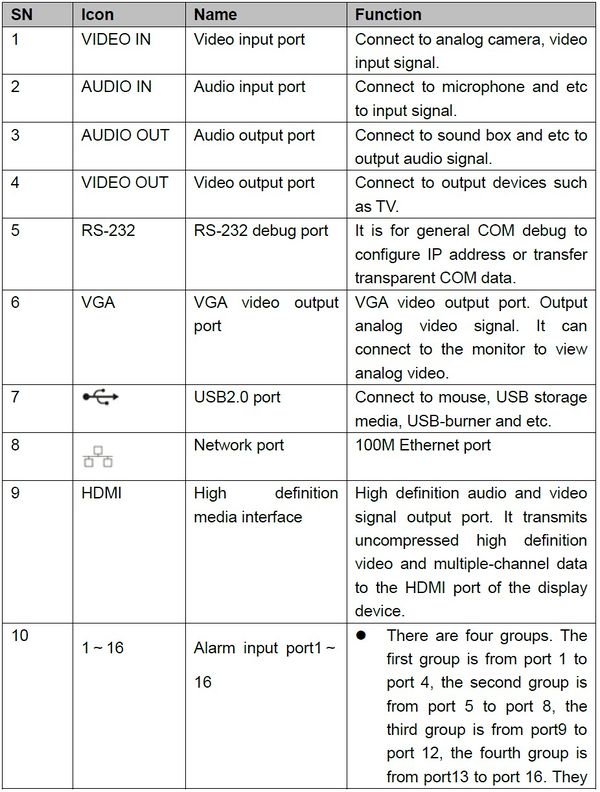

Back Panel
HCVR5216A/HCVR7208A Series
Intelligent Features
- Error creating thumbnail: Unable to save thumbnail to destination
Face Recognition
- Error creating thumbnail: Unable to save thumbnail to destination
Tripwire
- Error creating thumbnail: Unable to save thumbnail to destination
Intrusion
- Error creating thumbnail: Unable to save thumbnail to destination
Abandoned/Missing
Specifications
| Model | DH-HCVR72A04A-S3 | DH-HCVR72A08A-S3 | DH-HCVR72A16A-S3 | ||||
| System | |||||||
| Main Processor | Embedded processor | ||||||
| Operating System | Embedded LINUX | ||||||
| Video | |||||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | ||||
| Standard | Analog | NTSC/PAL | |||||
| HDCVI | 1080P/720P HDCVI Camera | ||||||
| IP | 4+2 up to 5Mp | 8+4 up to 5Mp | 16+8 up to 5Mp | ||||
| Audio | |||||||
| Input | 4 channel, RCA | ||||||
| Output | 1 channel, RCA | ||||||
| Two-way Talk | Reuse audio input/output channel 1 | ||||||
| Display | |||||||
| Interface | 1 HDMI, 1 VGA | ||||||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | ||||||
| Display Split | 1/4/6 | 1/4/8/9 | 1/4/8/9/16 | ||||
| Privacy Masking | 4 rectangular zones (each camera) | ||||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||||
| Recording | |||||||
| Video/Audio Compression | H.264/G.711 | ||||||
| Record Rate | Main Stream: | 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~30fps) | |||||
| Extra Stream | D1/CIF/QCIF(1~30fps) | ||||||
| Bit Rate | 1~6144Kb/s | ||||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | ||||||
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||||
| Video Detection & Alarm | |||||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | ||||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||||
| Alarm Input | 8 channel | 16 channel | 16 channel | ||||
| Relay Output | 3 channel | ||||||
| Playback & Backup | |||||||
| Sync Playback | 1/4 | 1/4/9 | 1/4/9/16 | ||||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | ||||||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||||
| Backup Mode | USB Device/Internal SATA burner/Network | ||||||
| Network | |||||||
| Ethernet | RJ-45 port (10/100M) | RJ-45 port (10/100M/1000M) | RJ-45 port (10/100M/1000M) | ||||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P | ||||||
| Max. User Access | 128 users | ||||||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||||||
| Storage | |||||||
| Internal HDD | 2 SATA ports, up to 12TB | ||||||
| Auxiliary Interface | |||||||
| USB Interface | 2 ports(1 Rear), USB2.0 | 2 ports (1 Rear USB3.0, 1 Front USB2.0) | |||||
| RS485 | 1 port, For PTZ control | ||||||
| General | |||||||
| Power Supply | DC12V/4A | DC12V/5A | |||||
| Power Consumption | 15W(without HDD) | ||||||
| Working Environment | -10°C ~+55°C / 10%~90%RH / 86~106kpa | ||||||
| Dimension(W×D×H) | 1U, 375mm×285mm×55mm | ||||||
| Weight | 2.35KG(without HDD) | ||||||
