Add User to Device

Description

This article will go over creating and binding a user to a ASA2212A through SmartPSS

Prerequisites

  • SmartPSS v2.02
  • ASA2212A

Step by Step Instructions

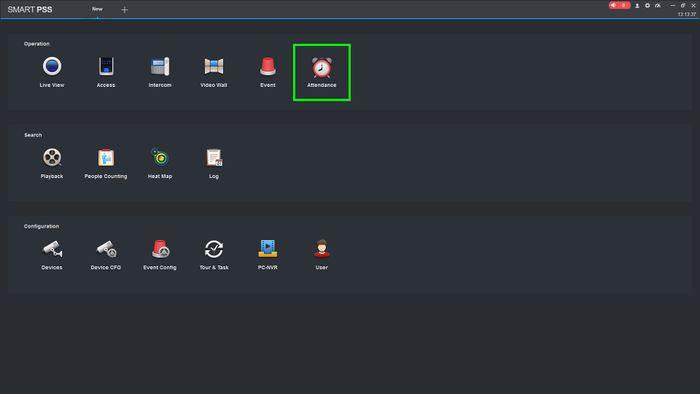

1. Open SmartPSS and click on the "Attendance" tab


2. Click on the "User" icon on the left to enter the User tab and then click on "Manual add"


3. Fill in the information for the user and click on "Finish" to save.


4. If done correctly, you will see the user in the field below.


5. To bind the user to the unit we need to click on "Access Control"


6. Enable the "Edit" option and on the drop-down bar select the department the user was added to.


7.The user will populate, check the boxes on the user and the unit you want to bind them to and click on "Bind device"


8. If done correctly you will see a successful pop up and the user has now been added to the unit.
