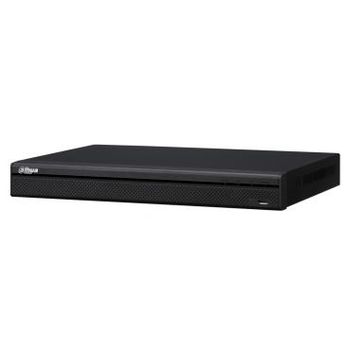

USA/HDCVI/DVR/Pro/X21A3E
X21A3E
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
Build Date: 06-01-2018
|
| Series: | Lite |
| Compatible Video: | HDCVI/AHD/TVI/CVBS (Auto-detect) |
| HD-CVI/Analog Channels: | 16 |
| IP Channels: | 16 + 8 |
| Video Compression: | Smart H.264+ / H.264 |
| HD-CVI/Analog Recording Resolutions: |
1080p at 1 to 15 fps or 1080N, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 1 to 30 fps |
| IP Recording Resolutions: | Up to 5 MP per channel |
| Input Bandwidth: | 96 Mbps |
| Video Output: | 1 HDMI, 1 VGA |
| HDD: | One (1) SATA Port, up to 8 TB capacity |
| eSATA: | 0 |
| Audio In: | 16 1 RCA + 15-channel DB25 Audio Dongle |
| Audio Out: | 1 RCA |
| Alarm In: | 16 |
| Alarm Out: | 3 |
| Network: | 1 Gigabit Port |
| USB: | 1 USB 3.0 Port, 1 USB 2.0 Port |
| Power: | 12 VDC, 2 A, 50/60 Hz <10W (No HDD) |
| IVS: | Yes (1 IP Channel) |
| POS: | No |
| Spot Out/ Video Matrix: | Yes, HDMI or VGA Interface, configurable |
EOL: End of Life
EOL Date: 6/19/2020
Suggested Replacement
Features
- Embedded Processor
- Smart H.264+ / H.264 Dual-stream Video Compression
- Offers 720p (real-time) and 1080p (15 fps) Resolutions
- 4, 8, or 16 HDCVI/AHD/TVI/CVBS Channels
- 4 + 2, 8 + 4, or 16 + 8 IP Channels, up to 5 MP per Channel
- Maximum 24/48/96 Mbps Incoming Bandwidth
- Built-in Smart Search
- Intelligent Video System (one IP channel)
Compression
- Error creating thumbnail: Unable to save thumbnail to destination
- Error creating thumbnail: Unable to save thumbnail to destination
Intelligent Features
- Error creating thumbnail: Unable to save thumbnail to destination
Abandoned/Missing
- Error creating thumbnail: Unable to save thumbnail to destination
Tripwire
- Error creating thumbnail: Unable to save thumbnail to destination
Intrusion
- Error creating thumbnail: Unable to save thumbnail to destination
Scene Change
Interfaces
|
|
|
|
|---|---|---|---|
| SystemUI Old | WebUI Old | SmartPSS | DSS Express S |
