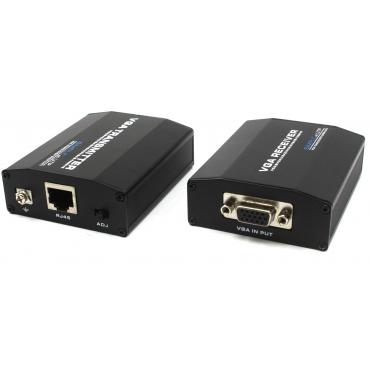

PFM710
Features
- Power supply: No need additional power supply.
- Transmission effect: Real-time transmission video without compression, no delay, strong anti-interference.
- Transmission distance: VGA video signal high fidelity transmission 75M (max)
- Main functions: Use single UTP (CAT-5E and CAT-6) transmit 1-ch video, lower cost.
- Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
- Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to install.
Compatible Body Type
- X
Compatible IP Cameras
- X
Compatible HD-CVI Cameras
- X
Specifications
Model | PFM710 | ||
Properties | |||
Transmission Signal | 1 channel | ||
Transmission Distance | 75M(max) | ||
Video Transmission Properties | |||
Video Signal Input Interface | Female 15, VGA port | ||
Video Input Interface | Female 15, VGA port | ||
Twisted-pair Video Transmission Port | RJ45 port | ||
Video Signal Processing Bandwidth | <120MHz(-3db)|- | Synchronous Signal Bandwidth | 1k-200kHz |
Adjustment | |||
Transmitter | 2 modes | ||
Receiver | 3 modes | ||
Protection | |||
ESD | 1a contact discharge electricity level 3 | ||
1b air discharge electricity level 3 | |||
Per: IEC61000-4-2 1995(GB/T 17626.5) | |||
Anti-thunder | 1KV | ||
Per: IEC61000-4-5 1995(GB/T 17626.5) | |||
Stability | |||
MTBF | >5000H | ||
Physical Properties | |||
Dimension(L*W*H) | Transmitter: 85mm×64mm×28 mm (port length included) Receiver: 85mm×64mm×28 mm | ||
Shell | Aluminum | ||
Color | Black | ||
N.W. | Transmitter: 111g Receiver: 110g | ||
Environmental | |||
Working Temperature | 0-55℃ | ||
Storage Temperature | -20~80℃ | ||
Humidity | 0~95%(non-condensing) |
