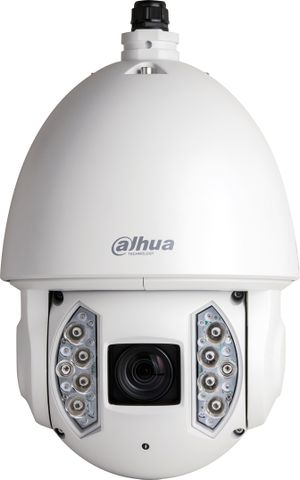

6AE240VNI
Features
- 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
- Powerful 40x Optical Zoom
- Starlight Technology for Ultra-low Light Sensitivity
- Triple-stream Encoding
- H.265 and H.264 Dual Codec
- 1080p at 60 fps Maximum Resolution
- Simultaneous SD Analog Video Output
- Ultra Wide Dynamic Range (140 dB)
- Maximum IR Distance up to 200 m (656 ft)
- Intelligent Video System (IVS) Analytics with Auto-tracking
- IP67 Ingress Protection and IK10 Vandal Resistance
- Designed for Extreme Temperature Environments
- Five-year Warranty (applies to products sold through an authorized Dahua Dealer.)
FOV
Firmware
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download
Build Date: 9-26-2021
PTZ Control Firmware
Compatible Accessories
Accessories Combo 1
Accessories Combo 2
Accessories Combo 3
Accessories Combo 4
Accessories Combo 5
Accessories Combo 6
Accessories Combo 7
Accessories Combo 8
Accessories Combo 9
Accessories Combo 10
Accessories Combo 11
Accessories Combo 12
Accessories Combo 13
Optional Accessories
Specifications
Camera | |
Image Sensor | 1/2.8-in. STARVIS™ CMOS Sensor |
Effective Pixels | 1920(H) x 1080(V), 2 MP |
RAM/ROM | 512 MB / 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | 1/1 s to 1/300,000 s |
Minimum Illumination | Color: 0.005 lux at F1.6 |
0 lux at F1.6 with IR on | |
S/N Ratio | More than 55 dB |
IR Distance | Distance up to 200 m (656.17 ft) |
IR On/Off Control | Auto, Manual |
IR LEDs | Ten (10) |
Lens | |
Focal Length | 4.5 mm to 180 mm |
Max. Aperture | F1.2 to F3.5 |
Angle of View | Horizontal: 67.5°to 1.7° |
Optical Zoom | 40x |
Focus Control | Auto, Manual |
Close Focus Distance | 100 mm to 1000 mm |
DORI Distance¹ | |
Detect (8 ppf) | 2469 m (8100 ft) |
Observe (19 ppf) | 988 m (3241 ft) |
Recognize (38 ppf) | 494 m (1621 ft) |
Identify (76 ppf) | 247 m (810 ft) |
PTZ | |
Pan/Tilt Range | Pan: 0° to 360° endless |
Tilt: -20° to 90° | |
Auto Flip 180° | |
Manual Control Speed | Pan: 0.1° to 200° /s |
Tilt: 0.1° to 120° /s | |
Preset Speed | Pan: 240° /s |
Tilt: 200° /s | |
Presets | 300 |
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
Speed Setup | Human-oriented Focal Length, Speed Adaptation |
Power up Action | Auto restore to previous PTZ and lens status after power failure |
Idle Motion | Activate Preset, Scan, Tour, Pattern if there is no command in the specified period |
Protocol | DH-SD, Pelco-P/D (auto recognition) |
Video | |
Compression | H.265, H.264, MJPEG |
Streaming Capability | Three (3) Streams |
Resolution | 1080p (1920 x 1080), 1.3 MP (1280 x 960), |
720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) | |
Frame Rate | Main Stream: 1080p or 720p at 60 fps; 1.3 MP at 30 fps |
Sub Stream 1: D1 or CIF at 30 fps | |
Sub Stream 2: 1080p, 1.3 MP, 720p, D1, or CIF at 30 fps | |
Bit Rate Control | CBR, VBR |
Bit Rate | H.265/H.264: 448 K to 8192 Kbps |
MJPEG: 4096 K to 20480 Kbps | |
Day/Night | Auto (ICR), Color, B/W |
Backlight Compensation | BLC, HLC, Ultra WDR (140 dB) |
White Balance | Auto, ATW, Indoor, Outdoor, Manual |
Gain Control | Auto, Manual |
Noise Reduction | Ultra DNR (2D/3D) |
Advanced Features | Motion Detection, Region of Interest, |
Electronic Image Stabilization (EIS), Defog | |
Digital Zoom | 16x |
Flip | 180° |
Privacy Masking | Up to 24 areas |
Audio | |
Compression | G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2 |
Network | |
Ethernet | RJ-45 (10/100 Base-T) |
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, | |
DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
Interoperability | ONVIF, PSIA, CGI |
Streaming Method | Unicast / Multicast |
Max. User Access | 20 users |
Edge Storage | Network Attached Storage (NAS) |
Local PC for instant recording | |
Micro SD card, up to 128 GB | |
Web Viewer | IE 10, Firefox, Safari |
Management Software | Smart PSS, DSS |
Smart Phone | IOS, Android, Windows |
Certifications | |
CE | EN 55032 |
EN 55024 | |
EN 50130-4 | |
UL | UL60950-1 + CAN/CSA C22.2, No.60950-1 |
Electromagnetic Compatibility (EMC) | FCC Part 15 Subpart B |
Interface | |
Video Interface | One (1) BNC |
Output: One (1) Channel | |
Alarm | Input: Two (2) Channels |
Output: One (1) Channel | |
RS485 | One (1) |
Electrical | |
Power Supply | 24 VAC, 3 A (± 25%), Hi-PoE |
Power Consumption | 24 W, 38 W with IR on |
Environmental | |
Operating Conditions | -40 °C to 70 °C (-40 °F to +158 °F), with built-in heater |
Less than 90% RH | |
Ingress Protection | IP67 |
Vandal Resistance | IK10 |
Lightning Protection Rating | 6 kV |
Construction | |
Casing | Metal |
Dimensions | Ø239.80 mm x 382.0 mm (Ø9.44 in. x 15.04 in.) |
Net Weight | 6.75 kg (14.88 lb) |
Gross Weight | |
Intelligence | |
IVS triggers an alarm and takes a defined action for the following events: | |
Standard Features | Tampering with the camera. |
Error writing to an onboard Micro SD card. | |
Error sending or receiving data over the network. | |
Unauthorized access to the camera. | |
Premium Features | |
Motion | An object moves through any part of the scene. |
Tripwire | A target crosses a user-defined line. |
Intrusion | A target enters or exits a defined perimeter. |
Scene Change | A person or object moves the camera to change the scene or covers the camera to obscure the scene. |
Abandoned/Missing Object | A target leaves an object in designated area, or a target removes an object from the same designated area. |
Advanced Features | |
Facial Detection | Detects and captures a snapshot of a human face in a defined area within a scene. |
Heat Map | Generates a visual representation of data. |
Auto-tracking | Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. |
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. |
