EVS/Remove RAID
Contents
Remove or Delete RAID
Description
This guide will show how to delete a RAID that has been created on a EVS device
Prerequisites
- EVS device powered on, set up and connected to the network
- RAID created in EVS - How To Setup RAID in EVS
- Computer with network access
- IP address of EVS device
Video Instructions
Step by Step Instructions
1. Log into the EVS System Manager by typing the IP in to a web browser
Enter the Username and Password and click Login
2. Click Storage
3. Click Raid

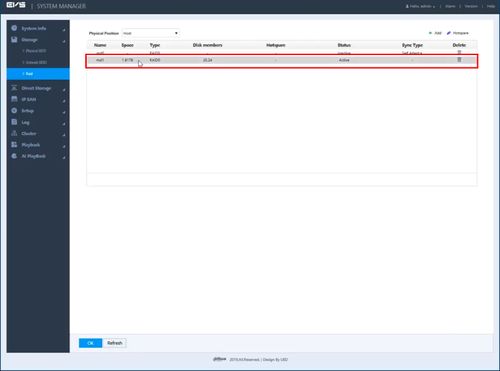

4. The current RAID information will be displayed
Left click to highlight the RAID you wish to remove
5. Click the Trash icon under the Delete column to remove the selected RAID
6. A prompt will appear to confirm
Click OK
7. A system message will confirm a successful RAID removal
8. A popup will confirm a successful removal
