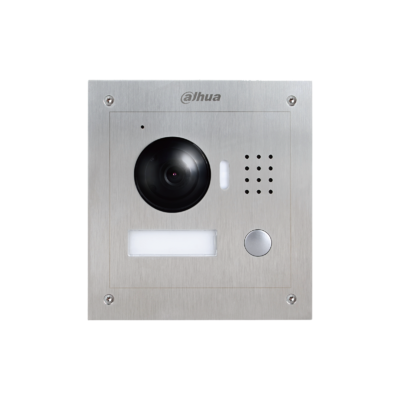

VTO2000A-S

VTO2000A-S
Specifications Manual Main Firmware MCU Firmware Voice Firmware

Build Date: 07-08-2019

Build Date: 11-23-2018

Build Date: 04-20-2019

Features

  • 1.3 MP Wide Angle Pivoting Camera with Night Vision
  • Built-in Microphone with Two-way Talk
  • Provides an Audible Alarm if Removed from the Wall
  • Connect Outdoor Stations to an NVR for Recording Call Sessions from the Indoor Monitor and for 24-hour Local Recording
  • Easily Leave Audio and Video Messages
  • View and Talk with Visitors and Remotely Unlock Doors Using the iDMSS/gDMSS App
  • Stainless Steel Panel can be Surface- or Flush-mounted
  • IP54 Ingress Protection and IK07 Vandal Resistance

Firmware Update Instructions

Firmware Update Download

Configuration Limitations

  • 20 Villa VTO maximum
  • 10 VTH maximum
  • Push notifications only work if a VTH is added to this device

Password Reset

Important: Must be on version 2017-04-02 v3.100.0000.0.R or higher

  • Press the tamper button five times and hold on the fifth, you'll hear the tamper siren and a quick beep afterward indicating that the reset was successful. The let go of the tamper button

VTO2000A Reset.jpg

Product Images

Product Box Box Contents Front Panel Back Panel
Product Box Box Contents Front Panel Back Panel
