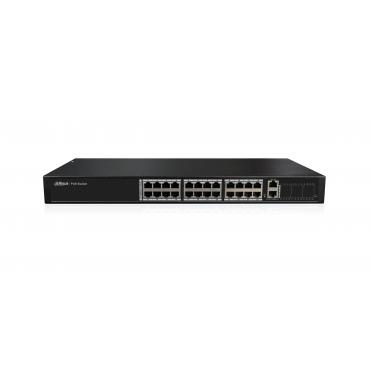

PFS4026-24P-370


float

Features

  • Two-layer network management POE switch
  • Support IEEE802.3af, IEEE802.3at standard
  • Support spanning tree protocol STP/RSTP
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
  • Support one-key recovery of IP address & user password

Specifications

Model PFS4026-24P-370
Ethernet port 2*10/100/1000 Base-T、
24*10/100 Base-T（PoE power supply）
PoE  power consumption Each power ≤30W，Total≤370W
PoE protocol IEEE802.3af、 IEEE802.3at
Exchange mode Store & forward
Application Humidity 10%－90%
Power AC 100～２40V
High&Low temperature ﹣10℃～55℃
Weight 2.79kg
Dimension(W×D×H) 442mm×124mm×44.5mm
