USA/IPCamera/PTZ/Pro/DH SD50A230TN HNI
DH-SD50A230TN-HNI
Specifications | Quick Start Guide | Manual | Firmware | PTZ Firmware |
---|---|---|---|---|
Coming Soon |
Coming Soon |
Coming Soon |
Coming Soon |
Coming Soon |
Features
- 30x optical zoom
- Support Triple-streams encoding
- Max. 25/30fps @1080P(1920x1080) & 50/60fps @720P resolution
- DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- Max 500°/s pan speed, 360° endless pan rotation
- Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
- Built-in 2/1 alarm in/out
- Support intelligent 3D positioning with DH-SD protocol
- Micro SD memory, IP67,IK10
- Tripwire, Intrusion, Abandoned/Missing, and Face Detection IVS
EOL: End of Life
EOL Date: 8/30/2017
Suggested Replacement
(2MP H.265 30x, coming June 2017)
CAD Images
Compression
FOV
Firmware
You can update your device with the IP Firmware Toolkit.
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download
Build Date: 06-01-2017
PTZ Control Firmware
Build Date: 11-28-2015
Intelligent Features
Compatible Accessories
Accessories Combo 1
Accessories Combo 2
Accessories Combo 3
Accessories Combo 4
Accessories Combo 5
Accessories Combo 6
Accessories Combo 7
Accessories Combo 8
Accessories Combo 9
Accessories Combo 10
Accessories Combo 11
Accessories Combo 12
Accessories Combo 13
Accessories Combo 14
Optional Accessories

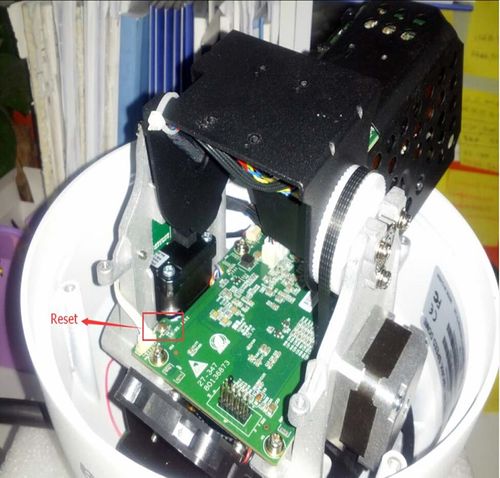

Reset Button
Specifications
Model | DH-SD50A230TN-HNI | |
Camera | ||
Image Sensor | 1/2.8” Exmor CMOS | |
Effective Pixels | 1920(H) x 1080(V), 2Megapixels | |
Scanning System | Progressive | |
Electronic Shutter Speed | 1/3 ~ 1/30,000s | |
Min. Illumination | Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 | |
S/N Ratio | More than 55dB | |
Camera Features | ||
Day/Night | Auto(ICR) / Color / B/W | |
Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
Gain Control | Auto / Manual | |
Noise Reduction | Ultra DNR (2D/3D) | |
Privacy Masking | Up to 24 areas | |
Digital Zoom | 16x | |
Lens | ||
Focal Length | 4.5mm~135mm (30x Optical zoom) | |
Max Aperture | F1.6~ F4.4 | |
Focus Control | Auto / Manual | |
Angle of View | H: 67.8° ~ 2.77° | |
Close Focus Distance | 100mm~1000mm | |
PTZ | ||
Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180° | |
Manual Control Speed | Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s | |
Preset Speed | Pan: 500° /s; Tilt: 500° /s | |
Preset | 300 | |
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
Speed Setup | Human-oriented focal length/ speed adaptation | |
Power up Action | Auto restore to previous PTZ and lens status after power failure | |
Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
Protocol | DH-SD(Auto recognition) | |
Video | ||
Compression | H.264 / MJPEG | |
Resolution | 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240) | |
Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
Sub Stream 2 | 720P/ D1/ CIF (1 ~ 25/30fps) | |
Bit Rate | H.264: 448K ~ 8192Kbps | |
Audio | ||
Compression | G.711a / G.711Mu(32kbps)/ PCM(128kbps) | |
Interface | 1/1 channel In/Out | |
Intelligent Function | ||
IVS (optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection | |
Face Detection | Support | |
Network | ||
Ethernet | RJ-45 (10/100Base-T) | |
Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, | |
Compatibility | ONVIF PSIA CGI | |
Max. User Access | 20 users | |
Smart Phone | iPhone, iPad, Android, Windows Phone | |
Auxiliary Interface | ||
Memory Slot | Micro SD, Max 128GB | |
Alarm | 2/1 channel In/Out | |
General | ||
Power Supply | AC24V/1.5A (±10%), POE plus (802.3at) | |
Power Consumption | 13W,23W (Heater on) | |
Working Environment | -40ºC ~ 60ºC / Less than 90% RH | |
Ingress Protection | IP67, IK10 | |
Dimensions | Φ186.0(mm) x 253(mm) | |
Weight | 2.5kg |
