USA/IPCamera/Pro/N24BN52

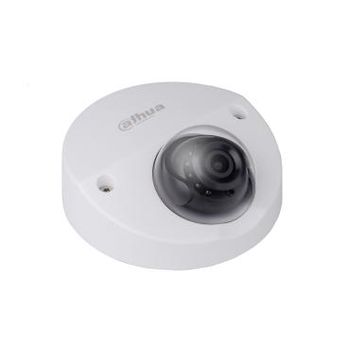

N24BN52/N24BN53
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
Build Date: 7-7-2021
|
| Series: | Pro |
| Body: | Wedge |
| Image Sensor: | 1/2.8-in. 2 MP Progressive Scan Exmor CMOS |
| Resolution: | 2 MP, 1920(H) x 1080(V) |
| Angle of View: | N24BN52 - Horizontal: 110°, Vertical: 58° N24BN53 - Horizontal: 87°, Vertical: 48° |
| Lens Type: | Fixed |
| Focal Length: | N24BN52 - 2.8 mm or N24BN53 - 3.6mm |
| Min. Illumination: | Color: 0.009 lux at 2.0 0 lux at F2.0 with IR on |
| Day/Night: | Auto (ICR), Color, B/W |
| Max. IR Range: | Up to 20.0 m (65.60 ft) |
| WDR: | 120dB |
| Video Compression: | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Audio Compression: | G.711a, G.711Mu, AAC, G.726 |
| Frame Rate: | 1080p or 720p at 60 fps |
| Multi-Streaming: | 3 Streams |
| IVS: | Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object |
| ONVIF: | Yes |
| Audio In: | 1 (Built-in Microphone) |
| Audio Out: | 0 |
| Memory Slot: | Micro SD Slot, maximum 128 GB |
| Alarm In: | 0 |
| Alarm Out: | 0 |
| IP Rating: | 67 |
| IK Rating: | 10 |
| Operating Temp: | –40° C to +60° C (–40° F to +140° F) Less than 95% RH |
| Power: | 12 VDC, PoE (802.3af, Class 0) < 4.5 W |
| ePoE: | No |
Features
- 1/2.8-in. 2 MP Progressive Scan Exmor CMOS
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 1080p (1920 × 1080) at 60 fps Maximum Resolution
- 2.8 mm or 3.6 mm Fixed Lens Options
- ArcticPro Series Camera - Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
- Built-in Microphone
- Maximum IR LED Length 20 m (65 ft)
- Five-year Warranty*
Compression
Intelligent Features
Abandoned/Missing
Tripwire
Intrusion
Scene Change
Interfaces
|
|
|
|---|---|---|
| WebUI Old | SmartPSS | DSS Express S |
FOV
Camera Height: 10m
Focal Length: 2.8mm
Target Horizontal Dist: 49.3m
Camera Height: 10m
Focal Length: 3.6mm
Target Horizontal Dist: 63.9m
Firmware
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Body Style with Compatible Accessories
Specifications
