USA/IPCamera/PTZ/Pro/DH SD42A212TN HNI

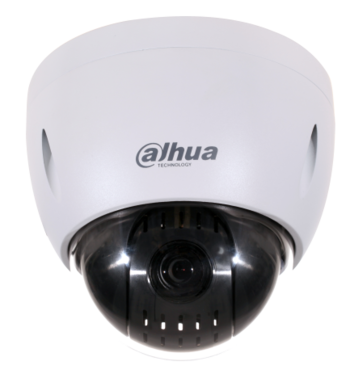

DH-SD42A212TN-HNI
| Specifications | Manual | Firmware | PTZ Firmware |
|---|---|---|---|
Build Date: 1-16-2018
|
Build Date: 01-09-2018
|
| Series: | Lite |
| Body: | PTZ |
| Image Sensor: | 1/2.7 in. CMOS |
| Resolution: | 2 MP, 1920(H) x 1080(V) |
| Angle of View: | Horizontal: 59.3° to 5.2° |
| Lens Type: | Varifocal |
| Focal Length: | 5.1 mm to 61.2 mm |
| Optical Zoom: | 12x |
| Min. Illumination: | Color: 0.05 Lux at F1.6; B/W: 0.005 Lux at F1.6 |
| Day/Night: | Auto (ICR), Color, B/W |
| Max. IR Range: | - |
| WDR: | 120dB |
| Video Compression: | Smart H.264+, H.264, MJPEG |
| Audio Compression: | G.711a, G.711mu, PCM |
| Frame Rate: | 1080p/D1 at 30 fps, 720p at 60 fps |
| Multi-Streaming: | 3 Streams |
| Pan/Tilt Range: | Pan: 0° to 360° endless Tilt: -2° to 90°, Auto Flip 180° |
| Preset Speed: | 300 Presets Pan: 300° /s Tilt: 200° /s |
| IVS: | Motion, Tripwire, Intrusion, Abandoned/Missing Object, Facial Detection |
| ONVIF: | Yes |
| Audio In: | One (1) Channel |
| Audio Out: | One (1) Channel |
| Memory Slot: | - |
| Alarm In: | Two (2) Channel |
| Alarm Out: | One (1) Channel |
| IP Rating: | 66 |
| IK Rating: | 10 |
| Operating Temp: | –30° C to +60° C (–22° F to +140° F), Less than 90% RH |
| Power: | 24 VAC, 1.5 A (± 10%), PoE+ (802.3at) < 12 W |
| ePoE: | No |
.png)
Features
- Powerful 12x optical zoom
- Support dual-streams encoding
- Max. 30fps@1080P(19201080) & 60fps@720P resolution
- WDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
- Max 300°/s pan speed, 360° continuous pan rotation
- Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
- Built-in 2/1 alarm in/out
- Support intelligent 3D positioning with DH-SD protocol
- IP66, IK10(optional), POE+
CAD Images
Compression
Intelligent Features
Abandoned/Missing
Tripwire
Intrusion
Face Detect
Interfaces
|
|
|
|---|---|---|
| WebUI Old | SmartPSS | DSS Express S |
FOV
Camera Height: 10m
Focal Length: 5.1mm
Target Horizontal Dist: 91m
Camera Height: 10m
Focal Length: 61.2mm
Target Horizontal Dist: 1099.1m
Compatible Accessories
Accessories Combo 1
PFB302S
PFA102
Accessories Combo 2
PFB300C
PFA102
Accessories Combo 3
PFA120
PFB300S
PFA102
Accessories Combo 4
PFA152 v2
PFB302S
PFA102
Accessories Combo 5
PFA150
PFB300C
PFA102
Accessories Combo 6
PFA151
PFB302S
PFA102
Accessories Combo 7
PFA151
PFB300C
PFA102
Accessories Combo 13
PFA102
PFB303S
Optional Accessories
PFA112
PFA113
Reset Button
