Video Wall Connect To PC Setup

How to Connect a PC to Video Wall

Prerequisites

  • Dahua Server Capable of Video Wall
  • Multiple Displays connected to Server
  • Completed the Video_Wall_How_To Instructions

Step By Step Instructions

1. Begin by identifying your monitors based on what input they are connected to currently.

For this example we will use the following: 6 Displays, stacked 2x3.

Video Wall
Display 1, Input 2.1 Display 2, Input 2.2
Display 3, Input 2.3 Display 4, Input 2.4
Display 5, Input 1.2 Display 6, Input 1.3


These will correlate with the inputs on the back of your server.


2. Login to your Video Wall server. For these instructions we used a M70 server.

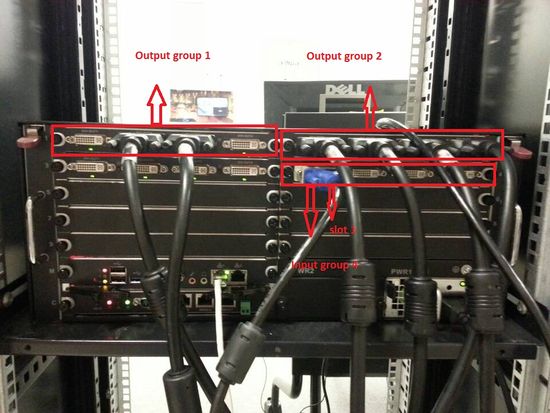

3. Connect a VGA cable to a VGA adapter to the back on the M70 on a input slot.

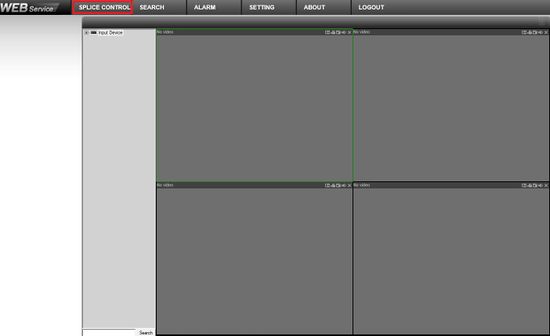

4. On the Video Wall server, click on spice control.

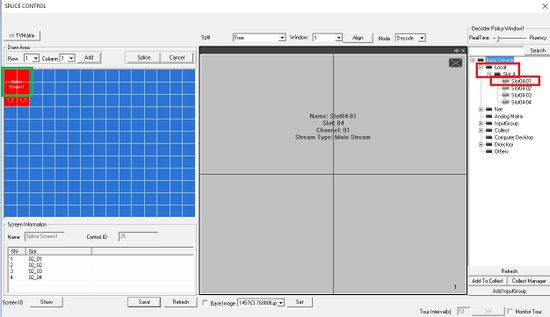

5. Select a screen on the left and go to local and select the input device.


6. You should be able to see it on the video wall.
