Access Control/How To Setup DHI ASM100

How To Setup DHI-ASM100

Description

This step by step guide will run through the use of DHI-ASM100 with SmartPSS 1.16.1's access control section to assist in assigning 13.56 MHz MIFARE cards.

Prerequisites

Video Instructions

Step by Step Instructions

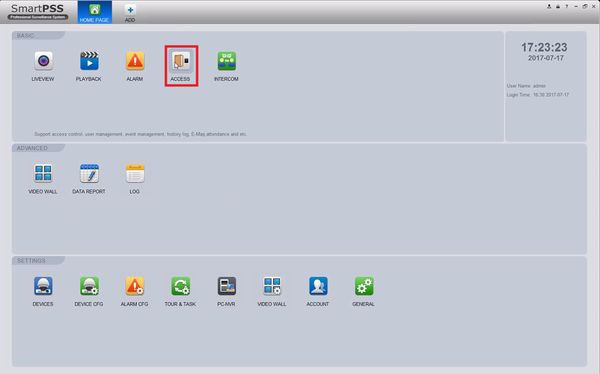

1. Connect the USB cable from the DHI-ASM100 to the Windows PC. Launch SmartPSS 1.16.1 then select ACCESS.

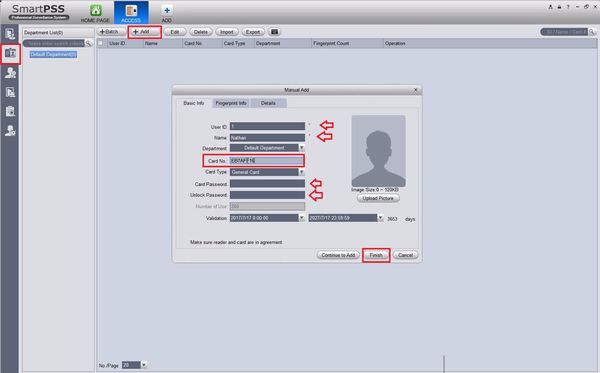

2. Single User: Select the User tab on the top left, then select +Add. This is the area of SmartPSS 1.16.1 where you can add a new user to the ACCESS, in this page you can input:

  • User ID
  • Name
  • Department (must be configured before)
  • Card Type
  • Card Password
  • Unlock Password
  • Validation Period
  • 120KB picture

When you select Card No. the DHI-ASM100 will beep. When the light is green it will read the card's data and place it in this area.

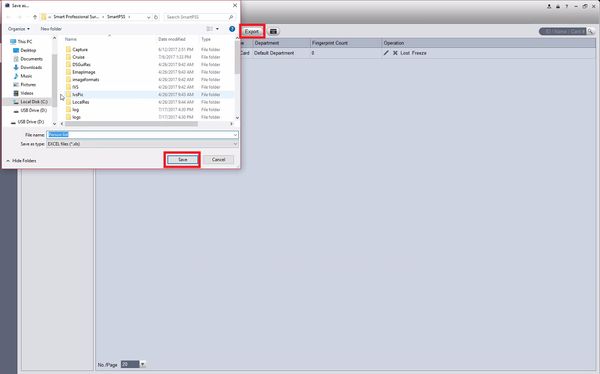

3. Batch User: This process is a bit more involved, however if you are trying to import the information from step 2 as a database, please follow. First, export the list currently by selecting Export. Save this file and open it with a compatible spreadsheet application.

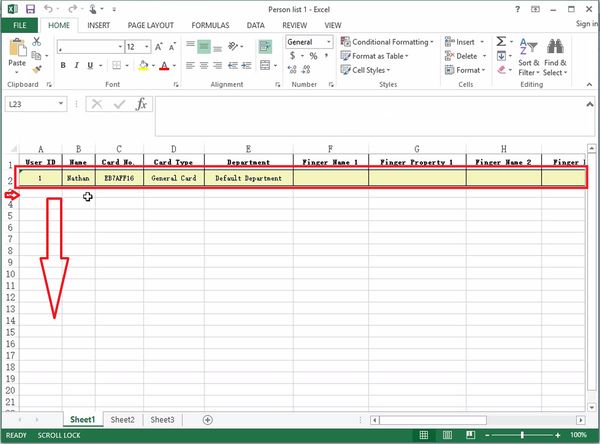

4. Copy row 2 to all applicable roles to keep the formatting the same.

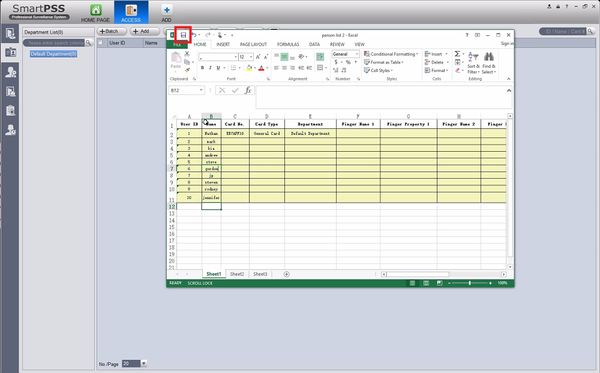

5. Now fill out all the information that you can into the spreadsheet. Then select Save.

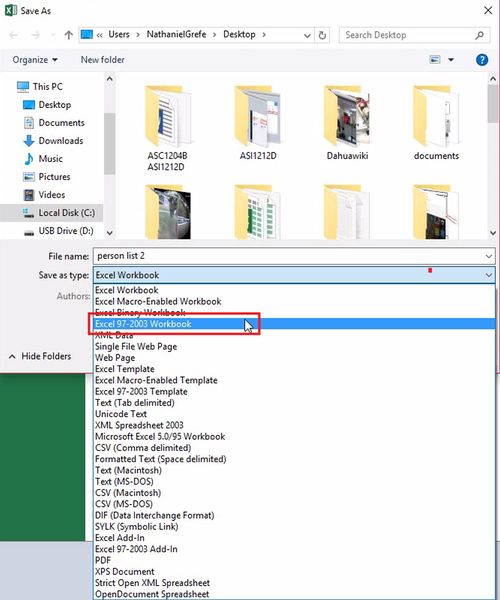

6. Make sure to save this file as a *.xls file, if you are using Microsoft Excel then you will need to select Excel 97-2003 Workbook (or compliant).

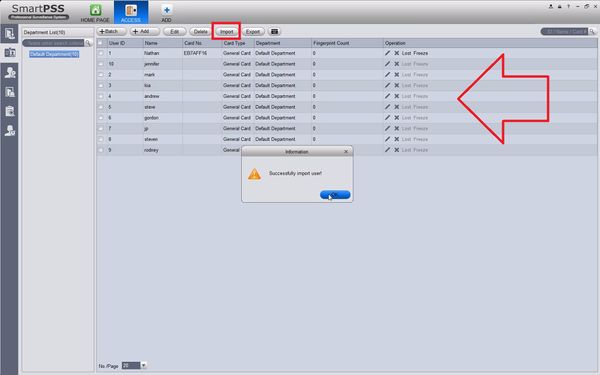

7. After saving the document, now select Import, then select the document and press ok. The list of users should now appear on the ACCESS-> Users page.

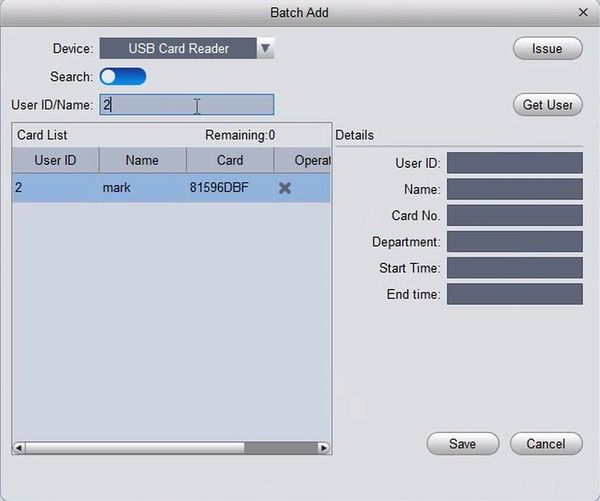

8. First select +Batch to begin batch processing with the DHI-ASM100. Second select Get User and enter in the User ID/Name. Now select Issue, the DHI-ASM100 will beep. When the light is green it will read the card's data and place it in this area. At last, select save once you are done.

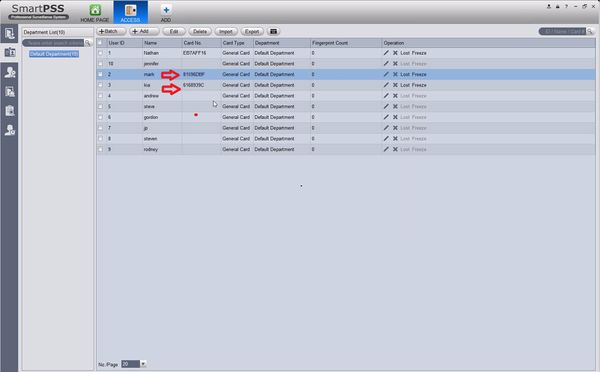

9. These batch entries will now reflect changes in the User list.
