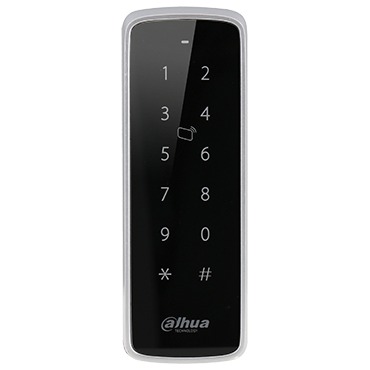

ASR1201D

ASR1201D
Specifications Manual Firmware

Build Date: 07-23-2021

Features

  • RS485, Wiegand 34/26 Protocols
  • Default IC (MIFARE) Card
  • Water-proof Design
  • Watch Dog Functionality to Detect Tampering
  • Audible Indicator
  • Surface-or Flush-mounted Installation

Wiring Diagrams

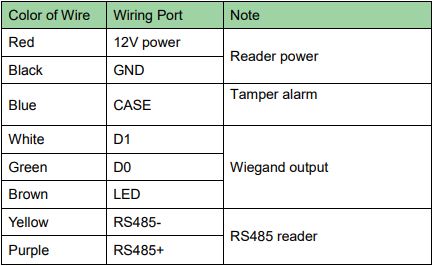

ASR1201 Wire.jpg

How to Update an Access Reader

  • Download Firmware file
  • Connect Reader to Door 1 connection on Door Controller (for example ASC1204B)
  • Open ConfigTool
  • Go to Device Upgrade - Locate firmware file and click Upgrade

Update Access Reader - 1.jpg

  • A green check mark will confirm a successful upgrade

Update Access Reader - 2.jpg
