Accessories/Keyboard/DH-NKB1000

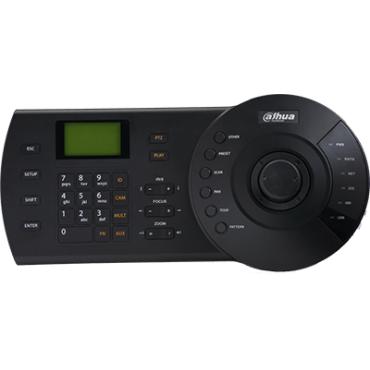

DH-NKB1000

DH-NKB1000

Specifications	QSG	Firmware
		Build Date: 02-21-2020

DH-NKB1000-E

NOTE	Firmware
If the above firmware fails to flash, you may have the NKB1000-E model. Please flash this firmware instead. This firmware will require the keyboard to be initialized with an 8-alphanumerical password.	Build Date: 03-02-2020

NKB1000 Setup

• How to setup NKB1000 over Network
• How to setup NKB1000 via RS485
• How to setup NKB1000 via USB and SmartPSS
• How to troubleshoot NKB1000

Firmware

Firmware Update Instructions

Compatibility

Keyboard can Control:

1. Dahua High Speed Dome (all models)

2. Dahua Standalone DVR (KBD1000 & NKB1000 only)

3. Dahua Network High Speed Dome (NKB1000 only)

4. Network Video Server (NKB1000 only)

VMS Compatibility

• HyperLab
• Avigilon
• OnSSI
• Salient Systems
• Exacq
• Milestone

Reset Method

Press and hold "ESC" for 30 seconds to reset the unit to Factory Default settings

Clear Cache

Press and hold "Shift" for 30 seconds to clear the cache. This method is primarily utilized when the NBK1000 is connected to a computer via the DSS client. After clearing the cache, ensure that the NBK1000 appears as an HID in the Device Manager of the computer.

Download Links

• Upgrade Tool
• USB Driver
• 20161024 Firmware Download
• 20170625 Firmware Download
