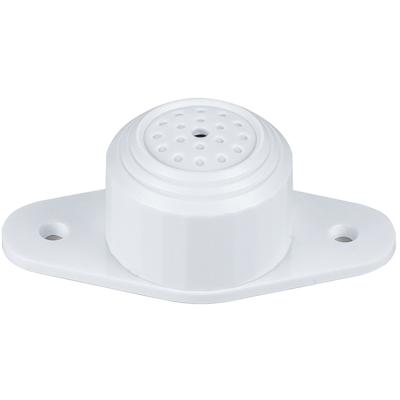

HAP100


float

Features

  • Omni-directional, High-fidelity Condenser Microphone
  • Pinhole Design for discreet installation
  • 30 KV Air Contact ESD with Built-in Lightning Protection
  • Power Supply Polarity Reversal and Electrostatic Protection

Specifications

Scope 5 to 40 m²
Sensitivity –40 dB,
  (–45 dB to –20 dB, adjustable)
Frequency Response 20 Hz to 20 KHz
Directional Characteristics Omni-directional
SNR 70 dB (1 m 40 dB Sound Source SPL)
Dynamic Range 104 dB (1 KHz at Maximum dB SPL)
Maximum Sustainable Sound Pressure 120 dB SPL (1 KHz, THD 1%)
Output Impedance 600 Ω (non-equilibrium)
Output Signal Amplitude 2.5 Vpp / –25 dB
Working Voltage 12 VDC (9 VDC to 15 VDC)
Working Current 60 mA (50 mA to 100 mA)
Working Temperature –30° C to +70° C (–22° F to 158° F)
Interface Audio Out: RCA
  Power In: DC Connector
Color White
Outer Shell PC Plastic
Dimensions 63.0 mm x 30.0 mm x 22.0 mm
  (2.48 in. x 1.18 in. x 0.87 in.)
Weight 0.034 kg (0.08 lb)
Certifications CE
  FCC
