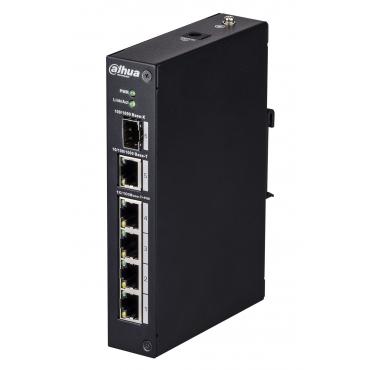

PFS3106-4P-60


Features

  • Two-layer industrial POE switch
  • MAC auto study and aging, MAC address list capacity is 8K
  • Support IEEE802.3af, IEEE802.3at standard
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
  • Industrial wide temperature design

Compatible Body Type

  • X

Compatible IP Cameras

  • X

Compatible HD-CVI Cameras

  • X

Specifications

Model DH-PFS3106-4P-60
Ethernet port 1*100/1000 Base-X、
1*10/100/1000 Base-T、
4*10/100 Base-T(PoE power supply)
PoE  power consumption Each power ≤30W,Total≤60W
PoE protocol IEEE802.3af、 IEEE802.3at
Exchange mode Store & forward
Application Humidity 10%-90%
Power Default DC53V power adapter
High&Low temperature ﹣30℃~65℃
Weight 480g
Dimension(W×D×H) 150mm×100mm×30mm
