Accessories/PoE Switches/S1000 8TP

From Dahua Wiki

Jump to: navigation, search




  • Two-layer POE switch
  • Port1、2 support 60W (Hi-PoE)、IEEE802.3af and IEEE802.3at standards
  • Support IEEE802.3af, IEEE802.3at standard
  • MAC auto study and aging, MAC address list capacity is 8K

Compatible Body Type

  • X

Compatible IP Cameras

  • X

Compatible HD-CVI Cameras

  • X

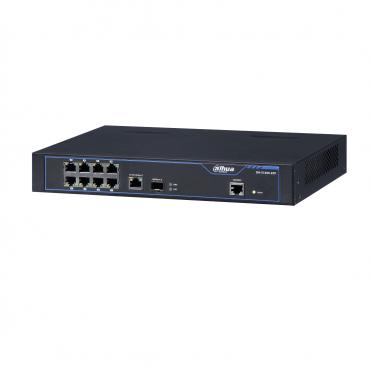

Model DH-S1000-8TP
Ethernet port 1*1000 Base-X、
1*10/100/1000 Base-T、
8*10/100 Base-T(PoE power supply)
PoE  power consumption port1、2 support ≤60W  (Hi-PoE)
port3、4 support ≤30W
port 5、6、7、8 support ≤15.4W
PoE protocol IEEE802.3af、 IEEE802.3at
Exchange mode Store & forward
Application Humidity 10%-90%
Power AC 100~240V
High&Low temperature ﹣10℃~55℃
Weight 2.66kg
Dimension(W×D×H) 300mm×220mm×44.4mm
