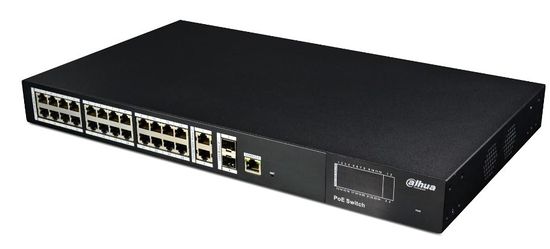

DH-PFS4228-24P-370


Features

  • Two-layer network management PoE switch
  • Support IEEE802.3af, IEEE802.3at standard
  • Support spanning tree protocol STP/RSTP
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
  • Support one-key recovery of IP address & user password

Specifications

Model PFS4228-24P-370
Ethernet ort 2*10/100/1000 Base-T、
2*1000 Base-X、
24*10/100 Base-T(PoE power supply)
PoE  Power Consumption Each power ≤30W,Total≤370W
PoE protocol IEEE802.3af、 IEEE802.3at
Switching Capacity 24.8G
Packet Forwarding Rate 9.52Mpps
Humidity 10%-90%
Power AC 100~240V
Lightning Protection Common Mode 2KV
Differential Mode 1KV
Working Temperature ﹣10℃~55℃
Weight 3.73kg
Dimension(W×D×H) 442mm x263mm x44.5mm


Service Characteristics

Model DH-PFS4228-24P-370
System Username / password: admin/admin
IP Address :192.168.1.200/24
PoE Budget 370W
MAC Table 16K
VLAN Port-based VLAN
802.1Q Standard VLAN
Spanning Tree STP
RSTP
Port Aggregation Link aggregation
Mirroring Support many-to-one port mirroring
Flow Control Support half-duplex based on back pressure type control;
Support full duplex based on PAUSE frame;
Multicast IGMP Snooping
Security Features Hardware supports IP+MAC binding based on port;
Support IEEE802.1x port authentication
System Maintenance Support the configuration file upload/download
Support the updated packet upload
Support system logs
Network Management WEB(http and https protocol)
