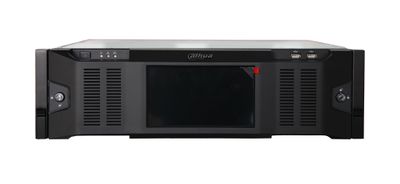

DSS7016DR


Features

  • Embedded device, 30*24 stable operation
  • High-performance stream media transfer and storage capability
  • Support tier and cascade deployment
  • Support local storage and IP-SAN storage
  • Support GIS Map (Google, Raster Map)
  • DSS series forwarding capacity max 700Mbit/s, storage capacity max 700 Mbit/s.
  • Support ONVIF, GB/T28181standard protocol gateway connection
  • DSS can manage all Dahua products such as Enconder, Decoder, Alarm host,Matrix, and Access control, etc
  • Front panel can displays system service status
  • Support Client/Server format client
  • Support Browser/Server format client or WEB manager

Performance

  • Support up to 2000 channels (support up to 500 input devices)
  • Support 10000 accounts management and 1000 online users
  • Support 700M transfer capability
  • Support 700M storage capability
  • Support 20 distributes server and 5-level cascade
  • E-map displays 200-channel on one screen
  • Process 1000-channel alarm per second.

Specifications

Model

DH-DSS7016DR

System

Main Processor

Intel Core Processors

Operating System

Embedded LINUX

FAN

Dual ball screw bearing fan, MTBF>10000h ,support replacement during operation

Power Supply

Redundant Power Supply

Motherboard

Embedded Board (Support 7*24 operation)

Case

Hot-dipped galvanized sheet steel (1.2mm thickened), High-precise aluminum alloyslide, Patented pull-out rack design.

Video & Audio

Video Input

MAX support 2000-ch input / 500 device input

Audio

Support voice intercom: point to point /point to multiple points

Display

Multi-screen Display

It is used to split window. You can drag progress bar or click to split window. There are ten modes ranging from 1-window to 64-window. DSS Client is very powerful tool for managing the display.

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression

H.265/H.264/MJPEG

Multi Brands Support

Support H.265/H.264/MJPEG/JPEG2000/HD Panoramic Cameras/Fish eye Cameras, Onvif Cameras/Video Encoders from multiple brands

Resolution

12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.

Record Rate

700Mbps

Network Transfer

700Mbps

Record Channels

Up to 2000

Bit Rate

1~ 10Mbps (Selectable for each Camera)

Record Mode

Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop

Pre & Post Event Recording

Pre Event Record (1~30Sec), Post Event Record (10~300Sec)

Video Detection & Alarm

Trigger Events

Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips, IVS

Video AnalyticsFunctions

Support Intrusion Detection, Tripwires, Cross line, Face Detection, Motion Detection, Defined Zones

Video Detection

Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

Alarm Input

Support network alarm input from camera

Relay Output

Support network relay output to camera

Playback & Backup

Playback

Up to 64 Cameras Synchronous Playback for each client

Search Mode

Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Network

Interface

4 RJ-45 ports (10/100/1000Mbps)

Ethernet Port

4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)

Max. User Access

10000users

Smart Phone

iPhone, iPad, Android, Windows Phone

Storage

Internal HDD

1 System HDD, 15 HDD Slots for Recording

HDD Mode

Single, Raid 0/1/5/6

SAN Storage

via iSCSi protocol

Auxiliary Interface

Front cover

Display System Information and Status

USB

4 USB ports

General

Power Supply

100V~240V,47~63Hz, Redundant Power Supply, Hot-swappable

Power

10W~200W(With HDD)

Work Temperature

0℃~50℃

Work Humidity

5%~90%(non-condensation)

Dimension

526mm*485mm*135mm

Installation

Rack-mounted
