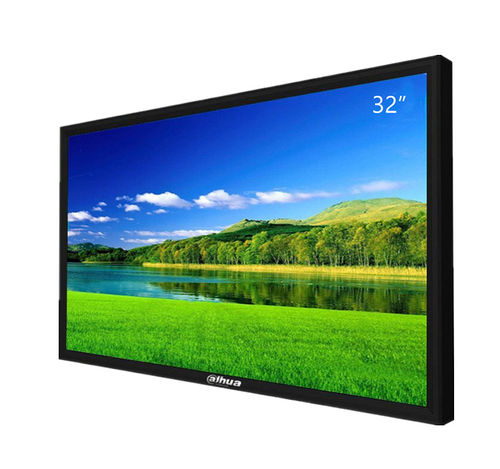

DHL32


Features

  • Industrial Level DID LCD panel, suitable for 7*24 continuous works.
  • High contrast and high brightness greatly enhance the video layer, and present the details of the video.
  • High fidelity digital processing, brilliant and vivid video.
  • Build-in 3D COMB filter and 3D Noise Reduction
  • Auto Motion-blur elimination to extend LCD lifespan
  • Abundant interfaces, support video loop
  • Remote control, software dual control, support remote PC centralized control
  • Support Point-to-Point remote control, solute the multiple large-screen video wall control perfectly
  • Intelligent brightness control, energy saving
  • Using Tamper-proof metal housing, no radiation
  • Professional thermal design to extend equipment lifespan
  • Built-in power, low energy consumption, ultra-quiet


Specifications

Model DHL32
System
Diagonal 32"(16:9)
Type S-PVA(HD)
Backlight LED
Resolution 1366×768
DotPitch 0.51075(H)×0.51075(V)
Luminance(Standard) 450cd/㎡
Contract 3000:1
Angleofview 178/178
ResponseTime(GreyScale) 8ms
Gamut(CIE1931) 72%
DisplayColor 16.7M/8bit
Saturation 92%
Video&Audio
VideoInput CVBS(BNC)×2
PCSignal VGA(D-Sub)×1
DigitalSignal DVI×1[1080P(1920×1080),downwardcompatible]
HDMI×1[1080P(1920×1080),downwardcompatible]
AudioInput
AudioOutput
LoopOut CVBS(BNC)×2
General
PowerConsumption(Standard) 50W
PowerConsumption(Maximum) 80W
PowerConsumption(Standby) ≤1W
PowerSupply AC100-240V~(+/-10%),50/60Hz
ControlMode RS232Serialcontrol,allwayloop,infraredremotecontrol
BezelColor Black
GrossWeight 17.6kg
UnitDimensions(mm) 789.0×484.0×58.2
ActiveScreenarea(mm) 697.68×392.26
PackageDimensions(mm) 890×590×256
FrameDepth(mm) 45.0
Enclosurematerial Metal
InstallationMode(alloptional) Base*,Wall-mounted*,TV-Wall*,Ceiling*
ProtectiveGlass/TouchScreen Optional
WorkingTemperature 0ºC~50ºC
WorkingHumidity 20%~90%
StockTemperature -20ºC~60ºC
AverageLifespan 50, 000hours
Note: '*'means optional fitting
