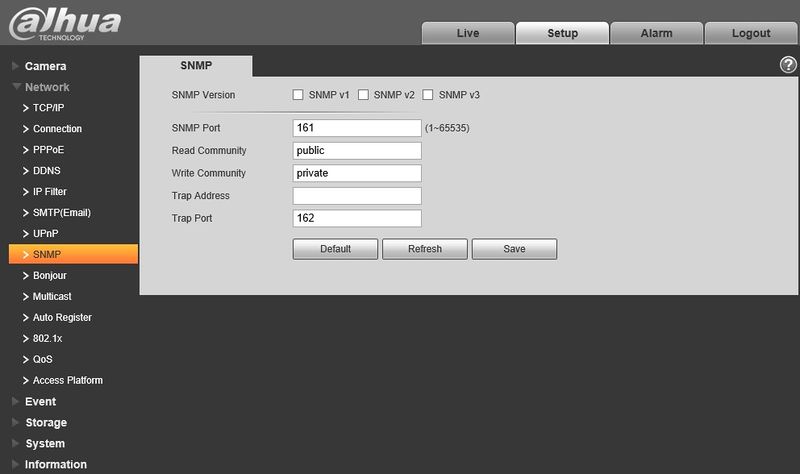

IPCSNMP

SNMP


The SNMP allows the communication between the network management work station software and the proxy of the managed device. Please install the software such as MG MibBrowser 8.0c software or establish the SNMP service before you use this function. You need to reboot the device to activate the new setup.

Parameter

Function

SNMP Version

  • Check SNMP v1, device only process v1 info.
  • Check SNMP v2, device only process v2 info.
  • Check SNMP v3, can set username, password and encryption method. Server calibrate corresponding username, password and encryption method too access device and v1/v2 are unavailable.

SNMP port

The listening port of the proxy program of the device. It is a UDP port not a TCP port. The value ranges from 1 to 65535. The default value is 161

Community

It is a string, as command between management and proxy, , defining a proxy,  and a manager’s authentication.

Read community

Read-only access to all SNMP targets, default is public.

Note: Only number, letter, _, and – supported.

Write community

Read/write access to all SNMP targets, default is private.

Note: Only number, letter, _, and – supported.

Trap address

The destination address of the Trap information from the proxy program of the device.


Trap

SNMP trap is a proxy message sent to admin as important event notice or status change.

Trap Address

Address where to send Trap message.

Trap Port

Port which send Trap message, default is 162, range 1~65535.

SNMP v3

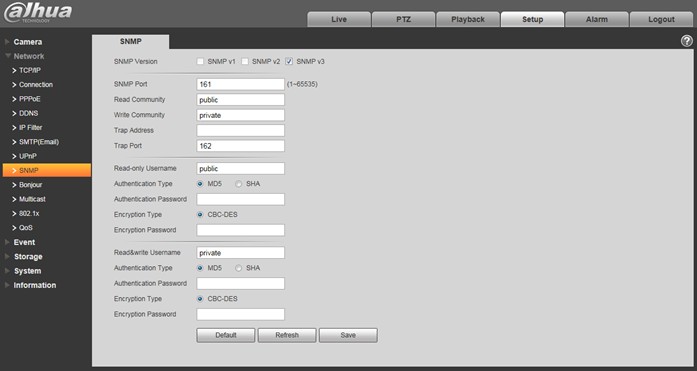

Note:Check SNMP v3 version and SNMP port, read community, write community, Trap address, Trap port are same with SNMP v1 and SNMP v2 versions. Only when SNMP version is SNMP v3, users need to configure parameter in chart.IPCSMTP3.jpg

Parameter

Function

SNMP Version

SNMP v3

Read-only Username

Default is public.

Note:

Name only can be number, letter and underline.

Read/Write Username

Default is private.

Note:

Name only can be number, letter and underline.

Authentication

You may select MD5 or SHA, default is MD5.

Authentication Password

Password not less than 8 characters.

Encryption

Default is CBC-DES.

Encryption Password

Password not less than 8 characters.
