IPCWebInterface

IP Camera Web Interface

Main Menu

There are four sections:

  • Section 1: Encode setup bar
  • Section 2: System menu
  • Section 3: Window function option bar
  • Section 4: Window adjust bar

Parameter

Function

Main stream

Streaming media protocol connection, under main stream config, monitor video or not. Generally for storage and monitor.

Sub (Extra) stream 1

Streaming media protocol connection, under sub stream 1 config, monitor video or not. When network bandwidth is insufficient, it substitutes main stream for monitoring.

Sub (Extra) stream 2

Streaming media protocol connection, under sub stream 2 config, monitor video or not. When network bandwidth is insufficient, it substitutes main stream for monitoring.

Protocol

You can select stream media protocol from the dropdown list.

There are three options: TCP/UDP/Multicast

System Menu

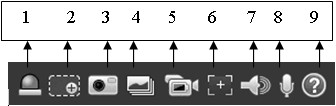

Video Window Function Menu


SN

Parameter

Function

1

Alarm output

It shows if there is any alarm output, status description is as follows:

  • Red: means there is alarm output.
  • Grey: means alarm is over.

Click on the button to force alarm to be on or off.

2

Zoom in

  • When the video is in the original status, click it you can select any zone to zoom in. In the non-original status, you can drag the zoom-in zone in specified range. Right click mouse to restore previous status.
  • Click it; you can use the middle button of the mouse to zoom in/out the video size.

3

Snapshot

Click on the button to snapshot, save picture to path in Ch 5.1.2.5.

4

Triple snap

Click it, system can snap at 1f/s. All images are saved to path in Ch 5.1.2.5.

5

Record

Click it, system can record. All images are saved to path in Ch 5.1.2.5.

6

Easy focus

Click it, you can see there are two parameters on the preview video:AF Peak and AF Max.

AF Peak: It is to display the video definition during the focus process.

AF Max: It is the most suitable value for the video definition.

The close the AF Peak and AF Max is, the better the focus effect is.

7

Audio output

Turn on or off audio when you are monitoring.



8

Bidirectional talk

Click it to start or end bidirectional talk.

9

Help

Click it to open help file.

Image Adjustment


Parameter

Function

Video setup

It is to adjust monitor video brightness.

Note:

  • All the operations here apply to WEB end only.
  • Please go to Setup->Camera->Conditions to adjust corresponding items.

It is to adjust monitor video contrastness.

It is to adjust monitor video hue.

It is to adjust monitor video saturation.

Reset

Restore brightness, contrastness saturation and hue to system default setup.

Video Window Setup


Original Size Click this button to go to original size. It is to display the actual size of the video stream. It depends on the resolution of the bit stream.
Full Screen Click it to go to full-screen mode. Double click the mouse or click the Esc button to exit the full screen.
Width and Height Ratio Click it to restore original ratio or suitable window.
Fluency Adjustment There are three levels of fluency for you to select (real-time, normal, fluent). The default is normal.
Rules Info Click the button, preview image will display intelligent rules after enabling; it is “enable” by default.
Focus zoom Click this button and the focus zooming interface appears on the right of preview interface, click left mouse button to adjust focus zooming configuration.

Note: • The product series which support motorized zoom, synchronous focus and back focus have this button. • Auto-focus after zoom and focus adjustment.

Fisheye Click the button, installation mode and display mode interface will show up on the right of the preview interface, see Figure 2-8, single click to switch different installation mode and display mode, default is enable.

Note: Only supported by fisheye devices.
