From Main Menu->Setting->Remote Device or right click mouse on the preview interface and then select remote device item, you can see the following interface.

Click Device search button, you can view the searched IP addresses at the top pane of the interface. Double click an IP address or check one IP address and then click Add button, you can add current device to the bottom pane of the interface. System supports batch add function.


Click Manual Add button, you can add a device directly. Here you can set TCP/UPD/auto connection mode. The default setup is TCP.

Important: Please note the manual add function is for Private, Panasonic, Sony, Dynacolor, Samsung, AXIS, SANYO, Pelco, Arecont, ONVIF, LG, Watchnet, Canon, PSIA, IVC, XUNMEI, and Custom. When the type is the custom, you can just input URL address, user name and password connect to the network camera without considering network camera manufacture. Please contact your network camera manufacturer for the URL address.

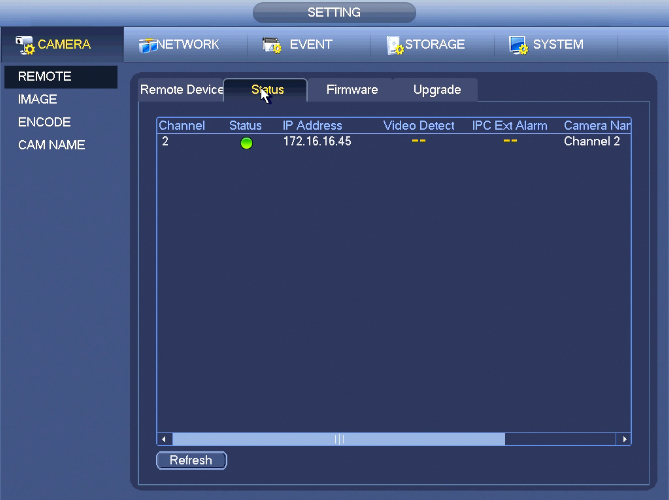

Status


Here you can view the IPC status of the corresponding channel such as motion detect, video loss, tampering, alarm and etc.

IPC status
  • Front-end does not support: FrontEndNoSupport.png
  • Front-end supports: FrontEndSupports.png
  • There is alarm event from current front-end:AlarmEvent.png
Connection status
  • Connection succeeded:ConnectionSucceeded.png
  • Connection failed:ConnectionFailed.png
  • Refresh: Click it to get latest front-end channel status.

Firmware


It is to view channel, IP address, manufacturer, type, system version, SN, video input, audio input, external alarm and etc.

Upgrade


From Main Menu->Setting->Camera->Remote->Upgrade

This section is to update the firmware of your IP Cameras through the NVR interface.

Click Browse button and then select the upgrade file. Then select a channel (or you can select device type filter to select several devices at the same time.) Click Begin button to upgrade. You can see the corresponding dialogue once the upgrade is finish.

Note: Right now, the NVR can upgrade the IPC via the USB device or WEB. You can upgrade 8 network cameras of the same model (or the NVR supported) at the same time.

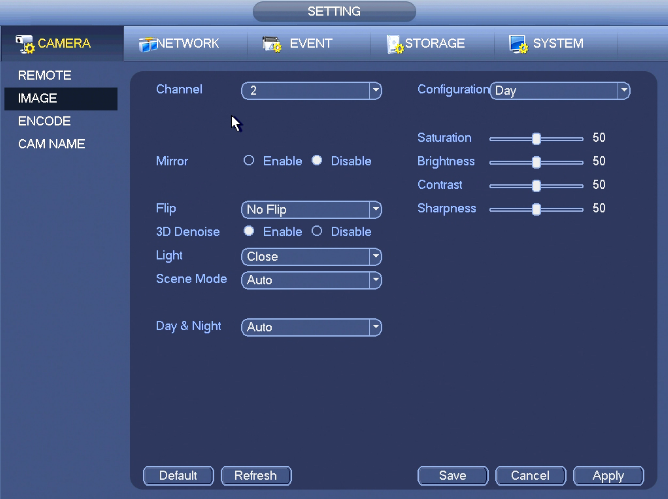

From main menu->setting->camera->image, you can see the image interface is shown as below.

  • Channel: Select a channel from the dropdown list.
  • Saturation: It is to adjust monitor window saturation. The value ranges from 0 to 100. The default value is 50. The larger the number, the strong the color is. This value has no effect on the general brightness of the whole video. The video color may become too strong if the value is too high. For the grey part of the video, the distortion may occur if the white balance is not accurate. Please note the video may not be attractive if the value is too low. The recommended value ranges from 40 to 60.
  • Brightness: It is to adjust monitor window bright. The value ranges from 0 to 100. The default value is 50. The larger the number is, the bright the video is. When you input the value here, the bright section and the dark section of the video will be adjusted accordingly. You can use this function when the whole video is too dark or too bright. Please note the video may become hazy if the value is too high. The recommended value ranges from 40 to 60.
  • Contrast: It is to adjust monitor window contrast. The value ranges from 0 to 100. The default value is 50. The larger the number is, the higher the contrast is. You can use this function when the whole video bright is OK but the contrast is not proper. Please note the video may become hazy if the value is too low. If this value is too high, the dark section may lack brightness while the bright section may over exposure .The recommended value ranges from 40 to 60.
  • Auto Iris: It is for the device of the auto lens. You can check the box before ON to enable this function. The auto iris may change if the light becomes different. When you disable this function, the iris is at the max. System does not add the auto iris function in the exposure control. This function is on by default.
  • Mirror: It is to switch video up and bottom limit. This function is disabled by default.
  • Flip: It is to switch video left and right limit. This function is disabled by default.
  • BLC:It includes several options: BLC/WDR/HLC/OFF.
  • BLC: The device auto exposures according to the environments situation so that the darkest area of the video is cleared
  • WDR: For the WDR scene, this function can lower the high bright section and enhance the brightness of the low bright section. So that you can view these two sections clearly at the same time. The value ranges from 1 to 100. When you switch the camera from no-WDR mode to the WDR mode, system may lose several seconds record video.
  • HLC: After you enabled HLC function, the device can lower the brightness of the brightest section according to the HLC control level. It can reduce the area of the halo and lower the brightness of the whole video.
  • OFF: It is to disable the BLC function. Please note this function is disabled by default.
  • Profile: It is to set the white balance mode. It has effect on the general hue of the video. This function is on by default. You can select the different scene mode such as auto, sunny, cloudy, home, office, night, disable and etc to adjust the video to the best quality.
  • Auto: The auto white balance is on. System can auto compensate the color temperature to make sure the vide color is proper.
  • Sunny: The threshold of the white balance is in the sunny mode.
  • Night: The threshold of the white balance is in the night mode.
  • Customized: You can set the gain of the red/blue channel. The value reneges from 0 to 100.
  • Day/night. It is to set device color and the B/W mode switch. The default setup is auto.
  • Color: Device outputs the color video.
  • Auto: Device auto select to output the color or the B/W video according to the device feature (The general bright of the video or there is IR light or not.)
  • B/W: The device outputs the black and white video.
  • Sensor: It is to set when there is peripheral connected IR light.

Please note some non-IR series product support sensor input function.

Encode


Encode


Encode setting is to set IPC encode mode, resolution, bit stream type and etc

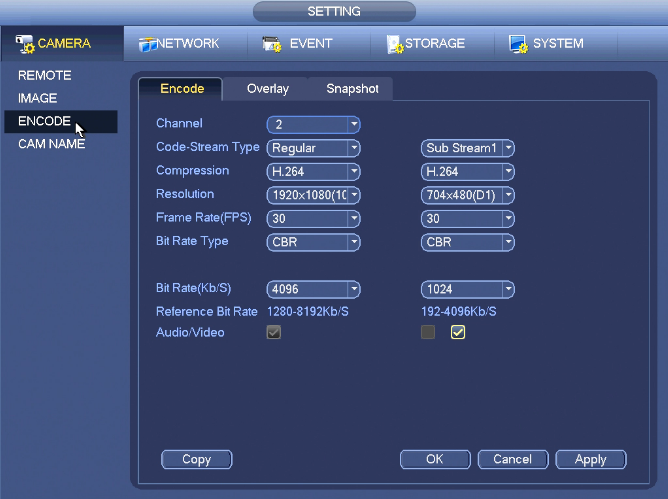

From Main menu->Setting->System->Encode, you can see the following interface.

  • Channel: Select the channel you want.
  • Type: Please select from the dropdown list. There are three options: regular/motion detect/alarm. You can set the various encode parameters for different record types.
  • Compression: System supports H.264, MPEG4, MJPEG and etc.
  • Resolution: The mainstream resolution type is IPC’s encoding config. Generally there is D1/720P/1080P. For NVR42-4K, NVR42-8P-4K series product, the main stream supports 2048×1536(3M),1920×1080(1080P), 1280×1024(S×GA), 1280×960(3M),1280×720(720P),704×576(D1)and the sub stream supports 704×576(D1),352×288(CIF).
  • Frame rate: It ranges from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in PAL mode.
  • Bit rate type: System supports two types: CBR and VBR. In VBR mode, you can set video quality.
  • Quality: There are six levels ranging from 1 to 6. The sixth level has the highest image quality.
  • Video/audio: You can enable or disable the video/audio. Please note, once you enable audio function for one channel, system may enable audio function of the rest channels by default.
  • Copy:After you complete the setup, you can click Copy button to copy current setup to other channel(s). You can see current channel number is grey. Please check the number to select the channel or you can check the box ALL. Please click the OK button to complete the setup. Please note, once you check the All box, you set same encode setup for all channels. Audio/video enable box, overlay button and the copy button is shield.

Overlay

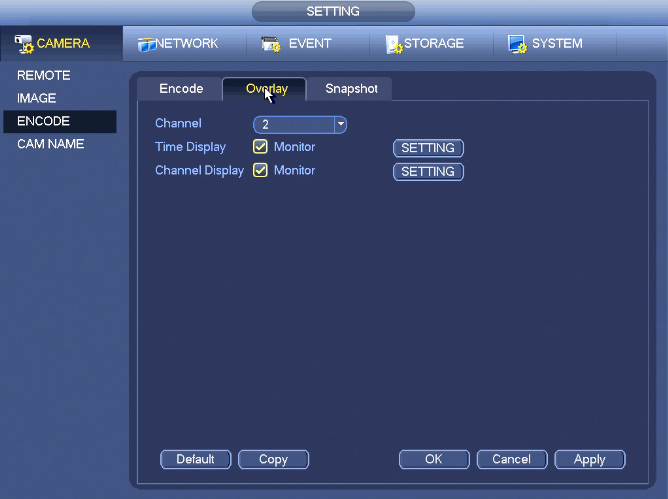

Click overlay button, you can see an interface is shown below:


  • Cover area: Here is for you to cover area section. You can drag you mouse to set proper section size. In one channel video, system max supports 4 zones in one channel. You can set with Fn button or direction buttons.
  • Preview/monitor: The cover area has two types. Preview and Monitor. Preview means the privacy mask zone can not be viewed by user when system is in preview status. Monitor means the privacy mask zone can not be view by the user when system is in monitor status.
  • Time display: You can select system displays time or not when you playback. Please click set button and then drag the title to the corresponding position in the screen.
  • Channel display: You can select system displays channel number or not when you playback. Please click set button and then drag the title to the corresponding position in the screen.

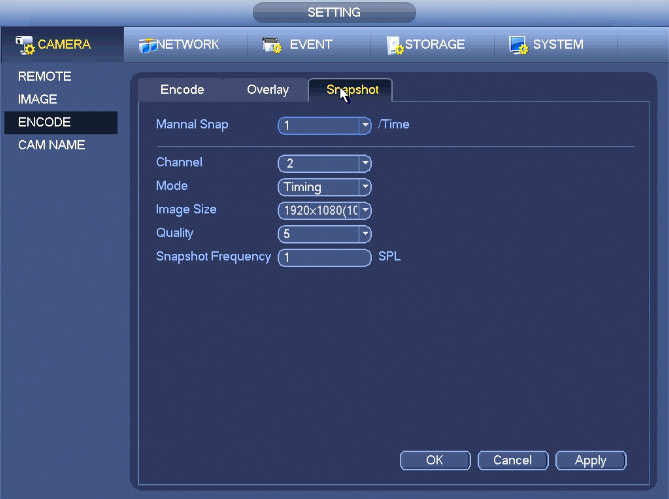

Snapshot


Here you can set snapshot mode, picture size, quality and frequency.

  • Snapshot mode: There are two modes: regular and trigger. If you set regular mode, you need to set snapshot frequency. If you set trigger snapshot, you need to set snapshot activation operation.
  • Image size: Here you can set snapshot picture size.
  • Image quality: Here you can set snapshot quality. The value ranges from 1 to 6.
  • Interval: It is for you to set timing (schedule) snapshot interval.

Cam Name


From Main Menu->Setting->Camera->Channel Name

This section is to modify channel name. It max supports 31-character.

Please Note: You can only modify the channel name of the connected network camera.
