Preset Trigger from Fixed Camera

Description

When an event (Motion, IVS, etc) is triggered from a fixed camera, a PTZ on the same recorder can be configured to respond with a PTZ Preset command

The feature can be enabled for various Event types, wherever the PTZ Activation option is found

Prerequisites

  • Dahua IP camera
  • Dahua Network PTZ (with at least 1 preset)
  • Dahua NVR or HDCVI DVR (both cameras added)

Instructions

Icon for type SystemUI Old.pngSystemUI Old

Prerequisites

  • Dahua IP camera
  • Dahua Network PTZ (with at least 1 preset)
  • Dahua NVR or HDCVI DVR (both cameras added)

Video Instructions

Step by Step Instructions

1. From Live View

Right click select Main Menu

Preset Trigger - SystemUI Old - 1.jpg

2. Under Setting

Click Event

Preset Trigger - SystemUI Old - 2.jpg

3. Click Video Detection

Preset Trigger - SystemUI Old - 3.jpg

4. Use the dropdown box to select the Channel the fixed camera is added to

Preset Trigger - SystemUI Old - 4.jpg

5. Check the box to enable

Preset Trigger - SystemUI Old - 5.jpg

6. Check the box next to PTZ Activation to enable

Preset Trigger - SystemUI Old - 6.jpg

7. Click Setting to configure the parameters of the trigger

Preset Trigger - SystemUI Old - 7.jpg

8. Use the dropdown box next to the corresponding channel that the PTZ camera is added to and select Preset

Preset Trigger - SystemUI Old - 8.jpg

9. Enter the Preset number

Preset Trigger - SystemUI Old - 9.jpg

10. Click OK

Preset Trigger - SystemUI Old - 10.jpg

11. Click Apply then OK to save all settings

Preset Trigger - SystemUI Old - 11.jpg

12. When the fixed camera detects motion it will send the PTZ command to the PTZ camera

Preset Trigger - SystemUI Old - 12.jpg

Icon for type SystemUI New.pngSystemUI New

Prerequisites

  • Dahua IP camera
  • Dahua Network PTZ (with at least 1 preset)
  • Dahua NVR or HDCVI DVR (both cameras added)

Video Instructions

Step by Step Instructions

1. From Live View right click

Select Main Menu

Preset Trigger - SystemUI New - 1.jpg

2. Click Alarm

Preset Trigger - SystemUI New - 2.jpg

3. Click Video Detection

Preset Trigger - SystemUI New - 3.jpg

4. Under Motion Detect

Use the dropdown box to select the Channel

Preset Trigger - SystemUI New - 4.jpg

5. Click to toggle and enable the Motion Detection

Preset Trigger - SystemUI New - 5.jpg

6. Check the box next to PTZ Activation to enable the function

Preset Trigger - SystemUI New - 6.jpg

7. Click Setting to configure the parameters for PTZ Activation

Preset Trigger - SystemUI New - 7.jpg

8. Use the dropdown box next to the corresponding channel that the PTZ camera is added to and select Preset

Preset Trigger - SystemUI New - 8.jpg

9. Enter the Preset number

Preset Trigger - SystemUI New - 9.jpg

10. Click OK

Preset Trigger - SystemUI New - 10.jpg

11. Click Apply

Preset Trigger - SystemUI New - 11.jpg

12. When the fixed camera detects motion it will send the PTZ command to the PTZ camera

Preset Trigger - SystemUI New - 12.jpg

Icon for type WebUI Old.pngWebUI Old

Prerequisites

  • Dahua IP camera (motion detection capability)
  • Dahua NVR or HDCVI DVR (both cameras added)
  • Dahua Network PTZ (with at least 1 preset)

Video Instructions

Step by Step Instructions

1. Log into the NVR.


2. Select setup.


3. Select Event -> Video Detection then select the Enable checkbox. Make sure period and region are set up correctly and trigger appropriately. Now check PTZ Activation and then select setup.


4. On the channel with the PTZ select the preset function and then type in the preset and then select OK.


5. Now select OK to Successfully saved! and wait 1 minute.

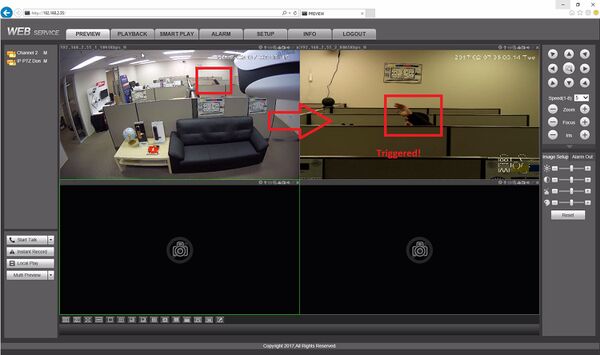

6. Go ahead and test this solution!


Icon for type WebUI New.pngWebUI New

Prerequisites

  • Dahua IP camera
  • Dahua Network PTZ (with at least 1 preset)
  • Dahua NVR or HDCVI DVR (both cameras added)

Video Instructions

Step by Step Instructions

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

Preset Trigger - WebUI New - 1.jpg

2. Click Alarm

Preset Trigger - WebUI New - 2.jpg

3. Click Video Detection

Preset Trigger - WebUI New - 3.jpg

4. Use the dropdown box to select the Channel

Preset Trigger - WebUI New - 4.jpg

5. Check the box to enable

Preset Trigger - WebUI New - 5.jpg

6. Click Setting next to PTZ Activation

Preset Trigger - WebUI New - 6.jpg

7. Check the box to enable the function

Preset Trigger - WebUI New - 7.jpg

8. Use the dropdown box next to the corresponding channel that the PTZ camera is added to and select Preset

Preset Trigger - WebUI New - 8.jpg

9. Enter the Preset number

Preset Trigger - WebUI New - 9.jpg

10. Click OK

Preset Trigger - WebUI New - 10.jpg

11. Click OK to save all settings

Preset Trigger - WebUI New - 11.jpg

12. When the fixed camera detects motion it will send the PTZ command to the PTZ camera

Preset Trigger - WebUI New - 12.jpg

Icon for type SmartPSS.pngSmartPSS

Prerequisites

  • Dahua IP camera
  • Dahua Network PTZ (with at least 1 preset)
  • Dahua NVR or HDCVI DVR (both cameras added)
  • Dahua recorder with cameras added to SmartPSS

Video Instructions

Step by Step Instructions

1. From the Main Menu

Click Device CFG

Preset Trigger - SmartPSS - 1.jpg

2. Left click the recorder in the device list on the left side of the screen

Preset Trigger - SmartPSS - 2.jpg]

3. Click to expand the Event section

Preset Trigger - SmartPSS - 3.jpg]

4. Click Video Detect

Preset Trigger - SmartPSS - 4.jpg]

5. Use the dropdown box to select the Channel

Preset Trigger - SmartPSS - 5.jpg]

6. Check the box to enable

Preset Trigger - SmartPSS - 6.jpg]

7. Check the box next to PTZ Link to enable the function

Preset Trigger - SmartPSS - 7.jpg]

8. Click Set next to PTZ Link

Preset Trigger - SmartPSS - 7-1.jpg]

9. Use the dropdown box next to the corresponding channel that the PTZ camera is added to and select Preset point

Preset Trigger - SmartPSS - 8.jpg]

10. Enter the Preset number

Preset Trigger - SmartPSS - 9.jpg]

11. Click Save

Preset Trigger - SmartPSS - 10.jpg]

12. Click Save

Preset Trigger - SmartPSS - 11.jpg]

13. When the fixed camera detects motion it will send the PTZ command to the PTZ camera

Preset Trigger - SmartPSS - 12.jpg]

Icon for type DSS Express S.pngDSS Express

Prerequisites

Video Instructions

EmbedVideo received the bad id "https://www.youtube.com/XXX" for the service "youtube".
==Step by Step Instructions==

DSS Mobile2 Icon.jpgDSS4004-S2 & DSS7016-S2

Prerequisites

Video Instructions

EmbedVideo received the bad id "https://www.youtube.com/XXX" for the service "youtube".
==Step by Step Instructions==

IDMSS Plus Icon2.jpgMobile:iDMSS Plus & gDMSS Plus
