Thermal/DH-TPC-HT2201/Instructions/Access via PC
Contents
How to access DH-TPC-HT2201 from PC
Description
This article is to show user how to access DH-TPC-HT2201 live view and settings menu from PC.
Pre-requisites
1. DH-TPC-HT2201 powered on.
2. DH-Thermal Software. Click here to download.
Video Instruction
Step by Step instruction

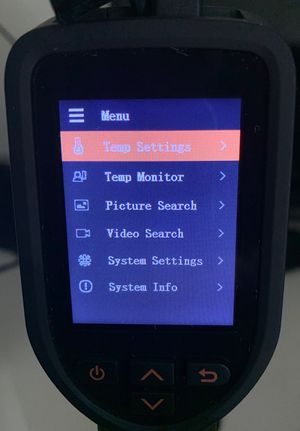

1. Go to Main Menu in handheld device by pressing arrow up
button.

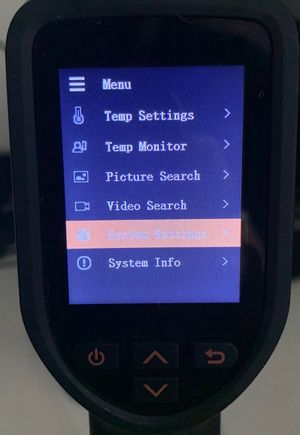

2. Go to System Settings, and then press the power
button to enter the menu.

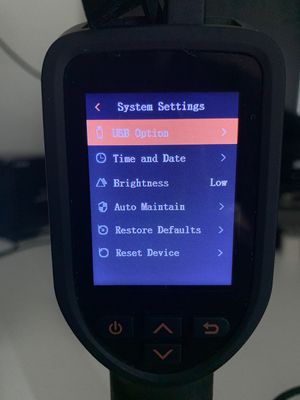

3. Press on the power button again to enter to USB Option.

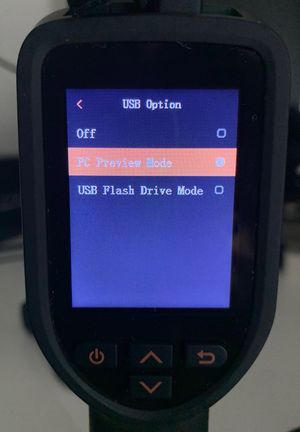

4. Select PC Preview Mode, and then press on power button again to set.

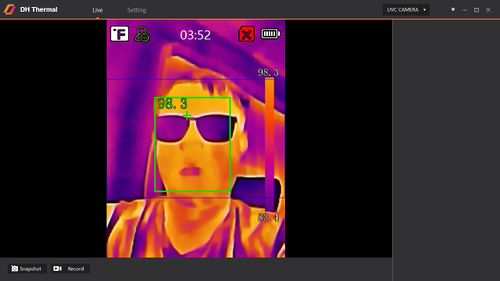

5. You will be able to see your camera live view display in DH-Thermal Software.
6. On the handheld device, keep pressing back
button to return to live view.
