Thermal/DHI-ASI7213X-T1

DHI-ASI7213X-T1

DHI-ASI7213X-T1
Instructions Specifications Manual Firmware T1 MCU Firmware MCU Firmware

Build Date: 07-15-2022

Build Date: 05-12-2020

Build Date: 05-26-2020

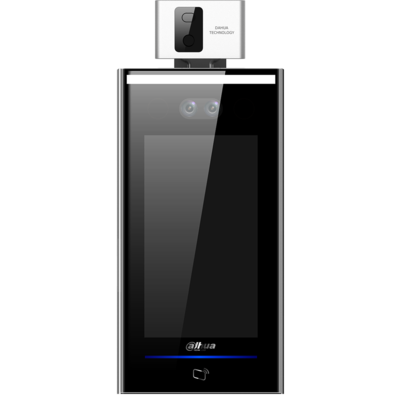

DHI-ASI7213X-T1 web image.png

Important Notice: When upgrading, need to upgrade using all 3 of these firmware files


Features

  • Support IC 13.56Mhz.
  • 7-in. LCD Display with a 600 x 1024 Resolution
  • Dual 2 MP CMOS Sensors
  • Infrared Temperature Sensor
  • Contactless Temperature Measurement from 0.30 m to 1.83 m (1.0 ft to 6.0 ft) from Station
  • Temperature Measurement Accurate to ±0.5° C (±0.9° F)
  • 100Mbps Nic = 192.168.2.108
  • 1000Mbps Nic = 192.168.1.108
  • Wifi = Default DHCP
  • NVR5216-16P-I can support 8ch Kiosk

PDF Guides

Users Manual Deployment Guide

Solution Specific

There is specific software and firmware to support the DHI-ASI7213X-T1


Build Date: 08-15-2020

Build Date: 07-15-2022

Build Date: 05-12-2020

Build Date: 05-26-2020
DSS Express ACS ConfigTool DHI-NVR5216-16P-I Firmware Firmware T1 MCU Firmware MCU Firmware

Product Images

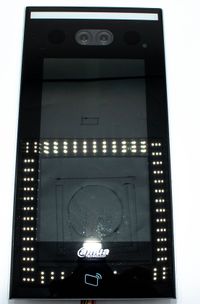

Product Box Box Contents Box Contents Wire Harness Front Panel Back Panel CAD
Product Box Box Contents Box Contents Wire Harness Front Panel Back Panel CAD


Recommended Accessories

Floor Stand ASF172X-T1 Desk Stand ASF072X-T1
Floor Stand
ASF172X-T1
Desk Stand
ASF072X-T1
