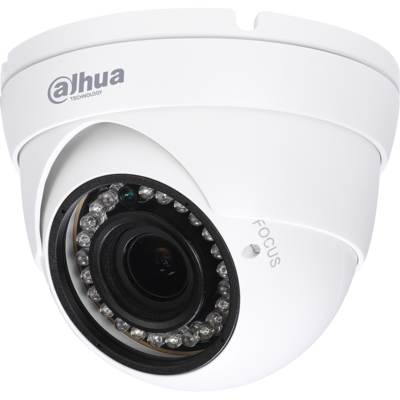

A21BH0V


Features

  • 1/2.9-in. Progressive-scan CMOS Sensor
  • 2 MP at 30 fps Maximum Resolution
  • HD and SD Dual-output, Multi-format SD Output
  • 2.7 mm to 12 mm Vari-focal Lens
  • Maxumum IR Distance 30 m (98 ft) with Smart IR
  • IP67 Ingress Protection
  • Designed for Extreme Temperature Environments

Body Style with Compatible Accessories

Specifications

Camera
Image Sensor 1/2.9-in. CMOS
Effective Pixels 1920(H) x 1280(V), 2 MP
Scanning System Progressive
Electronic Shutter Speed 1/30 s to 1/100000 s
Minimum Illumination Color: 0.02 Lux at F1.3
  0 Lux (with IR on)
S/N Ratio More than 65 dB
IR Distance Up to 30 m (98.42 ft)
IR On/Off Control Auto, Manual
IR LEDs 20
Lens
Lens Type Vari-focal Lens / Fixed Iris
Mount Type Board-in
Focal Length 2.7 mm to 13.5 mm
Max Aperture F1.3
Horizontal Angle of View 104° to 27°
Focus Control Manual
Close Focus Distance 200 mm (7.87 in.)
Range Pan: 0° to 360°
  Tilt: 0° to 90°
  Rotation: 0° to 360°
Video
Resolution 1080p (1920 x 1080)
Frame Rate 1080p at 30 fps
  720p at 30/60 fps
Video Output One (1) BNC HDCVI High-definition Channel, or
  One (1) BNC CVBS, AHD, or TVI Channel, switchable
Tranmission Distance2
  RG-59/U Coax 1080p: 500 m (1640.42 ft)
720p:   800 m (2624.67 ft)
  RG-6/U Coax 1080p: 800 m (2624.67 ft)
720p:   1200 m (3937.01 ft)
  CAT 5e UTP (balun required) 1080p: 300 m (984.25 ft)
720p:   450 m (1476.38 ft)
Day/Night Auto (ICR), Manual
OSD Menu Multi-language
BLC Mode BLC, HLC, DWDR
WDR Digital WDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto, Manual
Smart IR Auto, Manual
Certifications
Safety EN55032, EN55024, EN50130-4
  UL60950-1+CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B
  ANSI C63.4-2014
Electrical
Power Supply 12 VDC ±25%
Power Consumption Maximum 4.2 W (at 12 VDC with IR on)
Environmental
Operating Conditions -40° C to +60° C (-40° F to +140° F),
  Less than 95% RH
  Initiate startup above -40° C (-40° F)
Storage Conditions -40° C to +60° C (-40° F to +140° F),
  Less than 95% RH
Ingress Protection IP67
Construction
Casing Aluminium
Dimensions 119.0 mm x 97.40 mm
  (4.69 in. x 3.80 in.)
Net Weight 0.37 kg (0.81 lb)
Gross Weight 0.51 kg (1.12 lb)
2. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures.
