PFW3601-A180

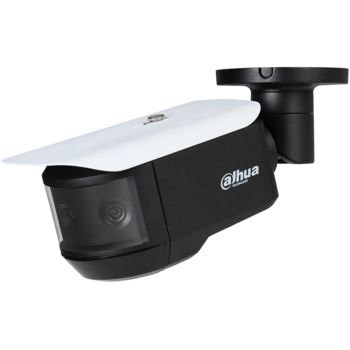

PFW3601 A180.jpg

Features

  • Three (3) 1/2.8-in 2 MP Progressive Scan CMOS Sensors
  • Simultaneous 180° Panoramic Output plus Three (3) 2 MP HDCVI Video Outputs
  • Three (3) 3.6 mm Lenses
  • Maximum 4096 x 832 at 30 fps Resolutions
  • True WDR (120 dB), 2D and 3D Noise Reduction
  • Intelligent Functions
  • Up to 500 m Transmission distance (using 75-3 coaxial cable)
  • Maximum IR Distance 20 m (66 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty

Compatibility

Note: This device is only compatible with 4MP+ HD-CVI Tribrid and Pentabrid recorders.

Specifications

Camera
Image Sensor Three (3) 1/2.8-in. 2 MP STARVIS™ CMOS Sensors
Effective Pixels 3840 (H) x 832 (V), Panoramic
Scanning System Progressive
Electronic Shutter Speed 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.005 Lux at F1.8 (30 IRE)
  0 Lux at F1.8 with IR on
S/N Ratio More than 65 dB
IR Distance Distance up to 20.0 m (65.62 ft)
IR On/Off Control Auto, Manual
IR LEDs Six (6)
Lens
Lens Type Fixed Lens, Fixed Iris
Mount Type Board-in
Focal Length 3.6 mm
Max. Aperture F1.8
Horizontal Angle of View 180˚
Close Focus Distance 500.0 mm (19.79 in.)
DORI¹ Distance
  Detect (8 ppf)
  50 m (163 ft)
  Observe (19 ppf)
  20 m (65 ft)
  Recognize (38 ppf)
  10 m (33 ft)
  Identify (76 ppf)
  5 m (16 ft)
Pan/Tilt/Rotation
Range Pan: 0° to 360°
  Tilt: 0° to 90°
  Rotation: 0° to 360°
Video
Resolution Panoramic Channel: 3840 x 832
  Individual Sensor Channel: 2 MP
Frame Rate² 4K DVR: 3840 x 2160 at 15 fps
  4 MP DVR: 2560 x 1440 at 25 fps
Video Output Four (4) Total Channels:
  One (1) BNC HDCVI Panoramic Video
  Three (3) BNC 2 MP HDCVI Video Channels
Video Transmission³
RG-59/U Coax 4K: 500 m (1640.42 ft)
4 MP: 500 m (1640.42 ft)
1080p: 500 m (1640.42 ft)
RG-6/U Coax 4K: 700 m (2296.59 ft)
4 MP: 700 m (2296.59 ft)
1080p: 800 m  (2624.67 ft)
CAT 6 UTP (balun required) 4K: 300 m (984.25 ft)
4 MP: 300 m (984.25 ft)
1080p: 300 m  (984.25 ft)
Day/Night Auto (ICR), Color, B/W
OSD Menu Multi-language
BLC Mode BLC, HLC, WDR
WDR True Wide Dynamic Range (120 dB)
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto, Manual
Smart IR Auto, Manual
Interface
Audio Input: One (1) Channel, RCA Jack
Alarm Input: Two (2) Channels
  Output: One (1) Channel
Test Interface One (1) Channel, 2-pin CVBS Video Output
Upgrade Interface One (1) Channel, 4-pin USB Input
Code Switcher One (1) Physical Code Switch (switches the source of the preset video)
Menu Set One (1) five-direction Keyboard
Electrical
Power Supply 12 VDC ± 25%
Power Consumption 22 W
Certifications
Safety EN55032, EN55024, EN50130-4
  UL60950-1+CAN/CSA C22.2 No.60950-1)
Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
  ANSI C63.4-2014
Environmental
Operating Temperature -30 °C to +60 °C (-22 °F to +140 °F),
  Less than 90% relative humidity
  Initiate start-up above -30 °C (-22 °F)
Storage Temperature -30 °C to +60 °C (-22 °F to +140 °F),
  Less than 90% relative humidity
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Aluminum
Dimensions 286.0 mm x 119.0 mm x 106.0 mm
  (11.26 in. x 4.68 in. x 4.19 in.)
Net Weight 1.50 kg (3.30 lbs)
Gross Weight 2.0 kg (4.40 lbs)
