DH-SD22A204IN-GC SD22A204TN.jpg
Series: Lite
Image Sensor: 1/2.7” 2MP CMOS
Lens: 2.7~11mm (4x Optical zoom)
Resolution: 1080P
H Field of View: 112.5° ~ 39°
Day/Night: ICR
Min. Illumination: 0.05Lux/F1.6 (Color), 0.005Lux/F1.6 (B/W)
Max. IR Range: -
OSD Menu: Support
Noise Reduction: 2D/3D
FPS: 30fps@1080P 30/60fps@720P
Video Output: HD/SD Switchable
Pan/Tilt/Zoom: 300 preset, Pan: 0° ~ 355°;
Tilt: 0° ~ 90°
Preset Speed: Pan: 100° /s; Tilt: 60° /s
Audio In: -
Audio Out: -
Built In Microphone: -
Memory Slot: -
Alarm In: -
Alarm Out: -
IP Rating: 66
IK Rating: 10
Working Temp: -30°C~+60°C
Power: DC12V, 1.5A
Firmware: URL


  • Powerful 4x optical zoom
  • Max. 25/30fps@1080P, 50/60fps@720P resolution
  • WDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
  • Max 100°/s pan speed
  • Control over coaxial cable, long distance real-time transmission
  • HD and SD switchable
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Support intelligent 3D positioning with DH-SD protocol
  • IP66, IK10, OSD

CAD Images


Compatible Accessories

Accessories Combo 1

Accessories Combo 2

Accessories Combo 3

Accessories Combo 4

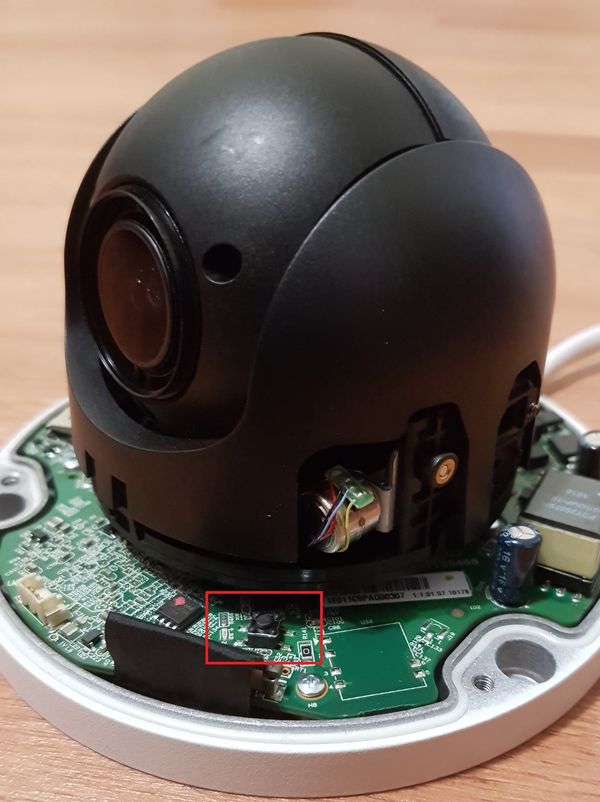

Reset Button

SD22204TN-GN reset button.jpg


Model DH-SD22A204IN-GC
Image Sensor 1/2.8" CMOS
Effective Pixels 1944(H) x 1092(V), 2 Megapixels
Horizontal Resolution ≥1000TVL
Scanning System Progressive
Electronic Shutter Speed 1/1s ~1/30,000s
Min. Illumination Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6
S/N Ratio More than 55dB
Resolution 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction 2D / 3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Focal Length 2.7mm~11mm(4x Optical zoom)
Max Aperture N/A
Focus Control Auto / Manual
Angle of View H: 112.5°~39°
Close Focus Distance 100mm~1000mm
Pan/Tilt Range Pan: 0° ~ 355° ; Tilt: 0° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~ 100°/s; Tilt: 0.1° ~60°/s
Preset Speed Pan: 100°/s; Tilt:60°/s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)
Auxiliary Interface
RS485 1
Power Supply DC12V, 1.5A
Power Consumption 10W
Working Environment -30ºC ~ 60ºC / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Dimensions Φ122mm×89mm
Weight 0.52Kg
