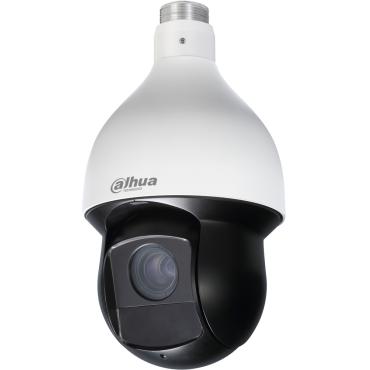

DH-SD59A230IN-HC-S2


float

Features

  • Max 60fps@720p and 30fps@1080p
  • Starlight Technology for Dark Environments
  • Powerful 30x Optical Zoom
  • True WDR
  • Built-in 2/1 Alarm in/out
  • HD and SD Switchable
  • IR Distance Up to 150m (492ft)
  • Outdoor Rated IP66

CAD Images

FOV

OSD Menu

PTZ OSD
59430IC OSD1.png
System Setting 59430IC OSD System.png
Display Setting 59430IC OSD Display.png
Camera Setting 59430IC OSD Camera1.png 59430IC OSD Camera2.png 59430IC OSD Camera3.png
Function Setting 59430IC OSD Function1.png 59430IC OSD Function2.png 59430IC OSD Function3.png
IR Light Setting 59430IC IR Setting.png

Specifications

Camera
Image Sensor 1/2.8" Exmor CMOS
Effective Pixels 1920 H x 1080 V
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30,000s
Minimum Illumination Color: 0.005Lux@F1.6;
B/W: 0.0005Lux@F1.6;
0Lux (IR on)
S/N Ratio More than 50dB
IR Distance 150m (492ft)
IR On/Off Control Auto / Manual
IR LEDs 4
Lens
Lens Type Motorized/ Auto Iris
Mount Type Board-in
Focal Length 4.5mm ~ 135mm (30x Optical zoom)
Max Aperture F1.6 ~ F5.0
Angle of View H: 67.8° ~ 2.7°
Focus Control Auto / Manual
Close Focus Distance 100mm ~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed Pan: 400° /s; Tilt: 300° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol DH-SD, Pelco-P/D (Auto Recognition)
Video
Resolution 30fps@1080p, 30/60fps@720p
Video Output 1-channel BNC HDCVI High Definition Video Output / CVBS Standard Definition Video Output (Switchable)
Day/Night Auto (ICR) / Color / B/W
BLC Mode BLC / HLC / WDR (120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Digital Zoom 16x
Flip 0°/180°
Privacy Masking Up to 24 areas
Interface
Audio Interface 1 Input
RS485 1
Alarm 2/1 In/Out
Certifications
Certifications FCC (SEFD1602154-B)
UL (E234884-A54-UL)
Electrical
Power Supply AC24V/3A (±10%)
Power Consumption Max. 13W, 25W (IR on)
Environmental
Operating Conditions -40°C ~ +70°C (-40°F ~ +158°F) / Less than 90% RH
*Start up should be done at above -35°C (-31°F)
Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Construction
Casing Metal+Plastic
Dimensions Φ186mm x 309mm (Φ7.32" x 12.17")
Net Weight 3.7 kg (8.16 lbs)
Gross Weight 6.8kg (15.00lbs)
