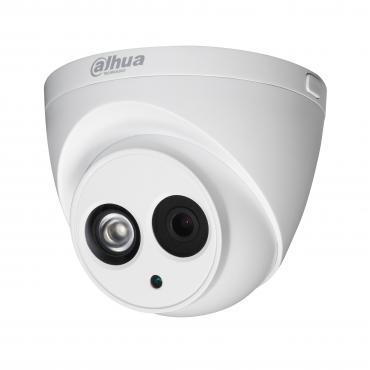

A21BG02 / A21BG03


float

float

Features

  • Maximum 1080p at 30 fps Resolution
  • HD and SD Switchable Output
  • 2.8 mm or 3.6 mm Fixed Lens Options
  • Maximum IR Length 50 m (164 ft) with Smart IR
  • IP67 Environmental Protection
  • Five-year Warranty

CAD Images

FOV

Specifications

Camera
Image Sensor 1/2.9-in. CMOS
Effective Pixels 1920(H) x 1080(V), 2 MP
Scanning System Progressive
Electronic Shutter Speed 1/30 s to 1/100000 s
Minimum Illumination 0.02 Lux at F2.0
  0 Lux (with IR on)
S/N Ratio More than 65 dB
IR Distance Up to 50 m (164 ft)
IR On/Off Control Auto, Manual
IR LEDs One (1)
Lens
Lens Type Fixed Lens / Fixed Iris
Mount Type Board-in
Focal Length A21BG02: 2.8 mm
  A21BG03: 3.6 mm
Max Aperture F2.0
Angle of View, Horizontal A21BG02: 51.2°
A21BG03: 82.8°
Close Focus Distance A21BG02: 500 m (19.7 in.)
  A21BG03: 800 m (31.5 in.)
Pan / Tilt / Rotation
Range Pan: 0° to 360°
  Tilt: 0° to 78°
  Rotation: 0° to 360°
Video
Resolution 1080p (1920 x 1080)
Frame Rate 1080p at 30 fps
  720p at 30/60 fps
Video Output One (1) BNC HDCVI High-definition Channel
  One (1) BNC CVBS Channel, switchable

Video Transmission² RG-59/U Coax 720p:   800 m (2624.67 ft)
  1080p: 500 m (1640.42 ft)
  RG-6/U Coax 720p:   1200 m (3937.01 ft)
  1080p: 800 m (2624.67 ft)
  CAT 6 UTP 720p:   450 m (1476.38 ft)
(balun required) 1080p: 300 m (984.25 ft)
Day/Night Auto (ICR), Manual
OSD Menu Multi-language
BLC Mode BLC, HLC, DWDR
WDR Digital WDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto, Manual
Smart IR Auto, Manual
Certifications
Safety EN55032, EN55024, EN50130-4
  UL60950-1+CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B
  ANSI C63.4-2014
Electrical
Power Supply 12 VDC ±25%
Power Consumption Max 2.9 W (12 VDC with IR on)
Environmental
Operating Conditions -40° C to +60° C (-40° F to +140° F),
  Less than 95% RH
  Initiate startup above -40°C (-40°F)
Storage Conditions -40° C to +60° C (-40° F to +140° F),
  Less than 95% RH
Ingress Protection  IP67
Construction
Casing Aluminium
Dimensions ø106.0 mm x 93.70 mm (ø4.17 in. x 3.69 in.)
Net Weight 0.44 kg (0.97 lb)
Gross Weight 0.58 kg (1.28 lb)
2. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures.
