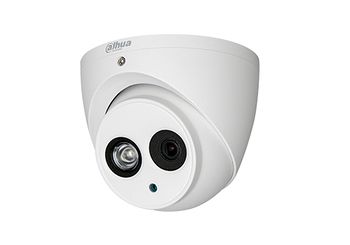

A42AG23


Features

  • 120 dB True WDR and 3DNR
  • Max. 4 MP Resolution in Real-time
  • HD and SD Dual-output
  • 3.6 mm Fixed Lens
  • Max. IR Length 50 m (164 ft) with Smart IR
  • IP67, DC12V

Video Introduction

Specifications

Camera
Image Sensor 1/3-in. CMOS
Effective Pixels 2688(H) × 1520(V), 4.1 MP
Scanning System Progressive
Electronic Shutter Speed 1/3 s to 1/300,000 s
Minimum Illumination 0.03 Lux @ F1.5
0 Lux (IR on)
S/N Ratio More than 65 dB
IR Distance Up to 50.0 m (164.04 ft)
IR On/Off Control Auto / Manual
IR LEDs One (1)
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6 mm
Max Aperture F1.5
Angle of View Horizontal: 78°
Close Focus Distance 1500.0 mm (59.06 in.)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° to 360°
Tilt: 0° to 78°
Rotation: 0° to 360°
Video
Resolution 4 MP (2560 × 1440)
Frame Rate 25 fps @ 4 MP, 25/30 fps @ 1080p,
25/30/50/60 fps @ 720p
Video Output One (1) BNC HDCVI High-definition Channel and, One (1) BNC CVBS Channel
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120 dB
Gain Control AGC
Noise Reduction 2D / 3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications FCC (CFR 47 FCC Part 15 SubpartB)
  ANSI C63.4-2014)
  UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Electrical
Power Supply 12V DC ±25%
Power Consumption Max 6.1 W (12V DC, IR on)
Environmental
Operating Conditions -30°C to +60°C (-22°F to +140°F), Less than 90% RH
Initiate start up above -30°C (-22°F)
Storage Conditions -30°C to +60°C (-22°F to +140°F), Less than 90% RH
Ingress Protection IP67
Construction
Casing Aluminium
Dimensions Φ106.0 mm × 93.70 mm (Φ4.17 in. × 3.69 in.)
Net Weight 0.44 kg (0.97 lb)
Gross Weight

0.58 kg (1.28 lbs)
