DH-HAC-HDBW22A1EN-2.8MM, 3.6MM, 6MM

DH-HAC-HDBW22A1EN-2.8MM, 3.6MM, 6MM HACHDBW22A1EN.jpg
Series: Pro
Image Sensor: 1/2.7" 2MP CMOS
Lens: 2.8MM, 3.6MM, 6MM
Resolution: 1080P
H Field of View: 90°(115.6°/59.4°)
Day/Night: ICR
Min. Illumination: 0.03Lux/F2.0, 0Lux IR on
Max. IR Range: 30m, Smart IR
OSD Menu: Multi-language
WDR: 120dB True WDR
Noise Reduction: 2D/3D
FPS: 30fps@1080P; 30/60fps@720P
Video Output: HD/SD Dual-output
Audio In: -
Alarm In: -
Alarm Out: -
Pan/Tilt/Rotation: 0°~355°/0°~65°/0°~355°
IP Rating: 67
IK Rating: 10
Working Temp: -30°C~+60°C
Power: DC12V±25%; Max 4.5W
Firmware: URL

Features

  • 1/2.7" 2.1Megapixel CMOS
  • 25/30fps@1080P, 25/30/50/60fps@720P
  • High speed, long distance real-time transmission
  • HD and SD dual-output
  • OSD Menu, control over coaxial cable
  • WDR(120dB), Day/Night(ICR), AWB, AGC, BLC, 3DNR
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • Max. IR LEDs length 30m, Smart IR
  • IP67, IK10, DC12V

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA136PFA136
Accessories Combo 2 PFB203WPFB203W
Accessories Combo 3 PFA136PFA136 PFA150PFA150
Accessories Combo 4 PFB203WPFB203W PFA152PFA152
Accessories Combo 5 PFA136PFA136 PFA151PFA151

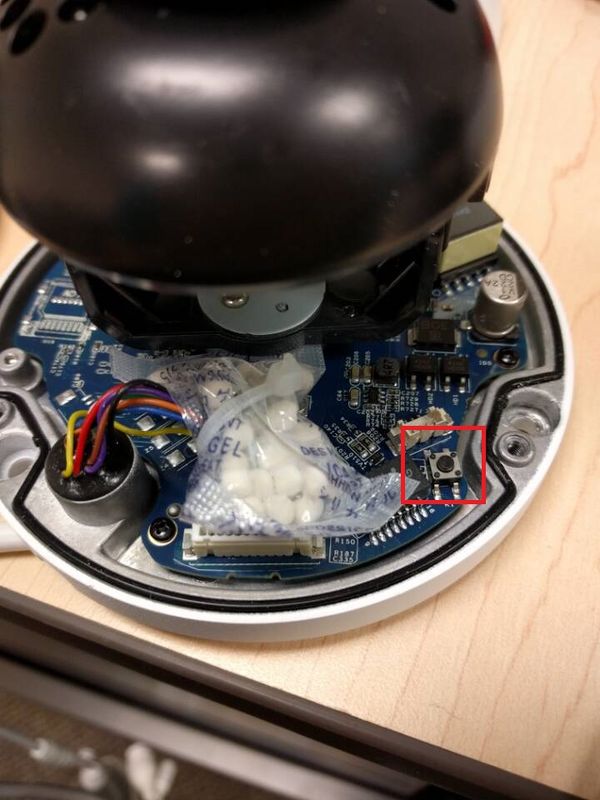

Reset Button

HDBW1300EN reset button.jpg

Specifications

Model DH-HAC-HDBW22A1EP DH-HAC-HDBW22A1EN
Camera
Image Sensor 1/2.7" 2.1Megapixel CMOS
Effective Pixels 1928(H)×1088(V)
Electronic Shutter 1/3s~1/300,000s
Video Frame Rate 25/30/50/60fps@720P; 25/30fps@1080P
Synchronization Internal
Mini. Illumination 0.03Lux/F2.0, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output & CVBS standard definition video output
Camera Features
Max. IR LEDs Length 30m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation 120dB True WDR
Noise Reduction 2D/3D
OSD Menu Multi-language
Lens
Focal Length 3.6mm (2.8mm, 6mm optional)
Angle of View H: 90º(115.6/59.4º)
Mount Type M12
General
Power Supply DC12V±25%
Power Consumption Max 4.5W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance Over 500m via 75-3 coaxial cable
Ingress Protection IP67 & IK10
Dimensions(W×D×H) Φ109.9mm×81.0mm
Weight 0.3kg
Material Metal
