DH-HAC-HFW32A1EN-Z

DH-HAC-HFW32A1EN-Z HACHFW32A1ENZ.jpg
Series: Super
Image Sensor: 1/2.8" 2MP Exmor R CMOS
Lens: 2.7~12mm, Motorized,Auto Iris
Resolution: 1080P
H Field of View: 100°~34°
Day/Night: ICR
Min. Illumination: 0.005Lux/F1.4, 0Lux IR on
Max. IR Range: 100m, Smart IR
OSD Menu: Multi-language
WDR: 120dB True WDR
Noise Reduction: 2D/3D
FPS: 30fps@1080P; 30/60fps@720P
Video Output: HD/SD Dual-output, Tester-out
Audio In: 1
Alarm In: 1
Alarm Out: 1
Pan/Tilt/Rotation: 0°~360°/0°~90°/0°~360°
IP Rating: 67
IK Rating: -
Working Temp: -30°C~+60°C
Power: AC24V±25%/DC12V±25%; Max 15.2W
Firmware: URL

Features

  • 1/2.8" 2.1Megapixel CMOS
  • 30fps@1080P, 30/60fps@720P
  • High speed, long distance real-time transmission
  • HD and SD dual-output (SDI optional), SD Tester out
  • OSD Menu, control over coaxial cable
  • 120dB True WDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
  • Audio, Alarm
  • 2.7~12mm motorized lens, Auto Iris
  • Max. IR LEDs length 100m, Smart IR
  • IP67, IK10, AC24V/DC12V

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA121PFA121
Accessories Combo 2 PFA121PFA121 PFA150PFA150
Accessories Combo 3 PFA121PFA121 PFA152PFA152
Accessories Combo 4 PFA121PFA121 PFA151PFA151

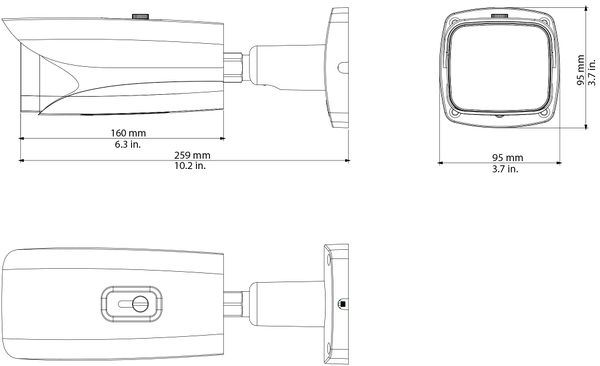

Product Diagram

CAD HDCVI Super HAC-HFW32A1EN-Z.jpg

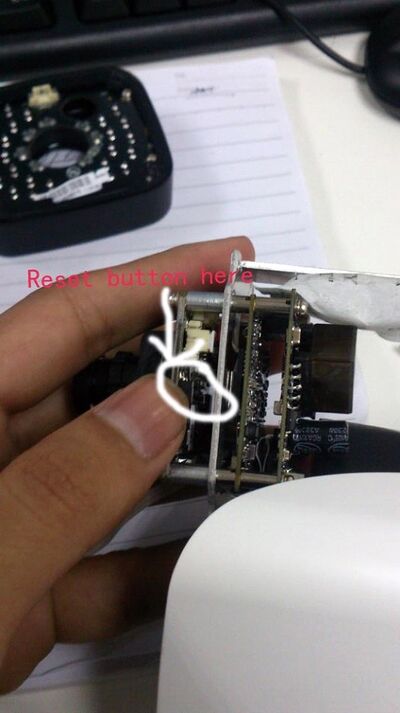

Reset Button

HFW4x00 reset button.jpg

Specifications

Model DH-HAC-HFW32A1EN-Z
Camera
Image Sensor 1/2.8" 2.1Megapixel CMOS
Effective Pixels 1945(H)×1097(V)
Electronic Shutter 1s~1/30,000s
Video Frame Rate 30/60fps@720P; 30fps@1080P
Synchronization Internal
Mini. Illumination 0.005Lux/F1.4, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output & CVBS standard definition video output
SD Tester out
Camera Features
Max. IR LEDs Length 100m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 2D/3D
OSD Menu Support
Lens
Focal Length 2.7~12mm
Angle of View H: 95º~36º
Lens Type Motorized / Auto Iris
Mount Type Φ14
Auxiliary Functions
Alarm 1 channel in/out
Audio 1 channel in
Heater Optional
General
Power Supply AC24V±25% / DC12V±25%
Power Consumption Max 16.6W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance Over 500m via 75-3 coaxial cable
Ingress Protection IP67, IK10
Dimensions(W×D×H) 273mm×95mm×95mm
Weight 1.2kg
Material Metal
