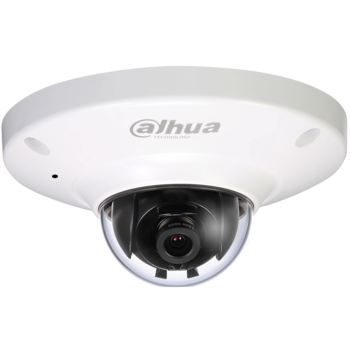

A42AR2



float

Features

  • 1/3-in. Progressive-scan CMOS Sensor
  • Maximum 4 MP at 30 fps Resolution
  • 1.18 mm Panoramic Lens
  • True Wide Dynamic Range (120 dB), 3D DNR
  • HD and SD Dual-output
  • IK10 Vandal Resistance

Specifications

Camera
Image Sensor 1/3-in CMOS Sensor
Effective Pixels 2688(H) x 1520(V), 4.1 MP
Scanning System Progressive
Electronic Shutter Speed 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.01 Lux at F2.0
  B/W: 0.001 Lux at F2.0
S/N Ratio More than 65 dB
Lens
Lens Type Fixed Lens / Fixed Iris
Mount Type Board-in
Focal Length 1.18 mm
Max Aperture F2.0
Angle of View 360°
Close Focus Distance 100 mm (3.94 in.)
Video
Resolution 4 MP (2560 x 1440)
Frame Rate 4 MP at 30 fps
Video Output One (1) BNC HDCVI High-definition Channel and, One (1) BNC CVBS Channel
Transmission Distances¹
RG-59/U Coax 720p: 500 m  (1640.42 ft)
1080p: 400 m  (1312.34 ft)
4 MP: 300 m (984.25 ft)
RG-6/U Coax 720p: 800 m  (2624.67 ft)
1080p: 600 m  (1968.50 ft)
4 MP: 600 m  (1968.50 ft)
CAT 6 UTP (balun required) 720p: 380 m  (1246.72 ft)
1080p: 380 m  (1246.72 ft)
4 MP: 200 m (656.17 ft)
Day/Night Auto (Electronic), Manual
OSD Menu Multi-language
BLC Mode BLC, HLC, WDR
WDR True WDR (120 dB)
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto, Manual
Certifications
Safety UL60950-1+CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC) CFR 47 FCC Part 15 Subpart B
  ANSI C63.4-2014
Electrical
Power Supply 12 VDC (± 25%)
Power Consumption Maximum 2.2 W ( at 12 VDC)
Environmental
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F),
  Less than 90% RH
  * Initiate startup above -30 °C (-22 °F)
Storage Conditions -30 °C to +60 °C (-22 °F to +140 °F),
  Less than 90% RH
Vandal Resistance IK10
Construction
Casing Aluminium
Dimensions 110.0 mm x 56.0 mm (4.33 in. x 2.20 in.)
Net Weight 0.41 kg (0.90 lb)
Gross Weight 0.45 kg (0.99 lb)

1. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures.
