DHI-HCVR72A04A-S3

DHI-HCVR72A04A-S3 HCVR72A04AS3.jpg
Series: Pro
Compatible Video: HDCVI/CVBS (Auto-detect)
HD-CVI/Analog Channels: 4
IP Channels: 2
Video Compression: H.264
Audio Compression: G.711/PCM
Max. Record Rate: 120fps@1080 / 120fps@720p
Audio In: 4
Audio Out: 1
HDD: 2x6TB
Display: HDMI, VGA
eSATA: -
USB: 1 USB 2.0, 1 USB 3.0
DVR Burner: USB/SATA
Alarm In: 8
Alarm Out: 3
Ethernet: 1x100M Port
Remote Login: 128
Dimension: 14.8in x 11.2in x 2.2in
IVS: yes
Fisheye Dewarp: -
POS: -
Highlights: Smart Play,
P2P, Coaxial Upgrade,
2D/3DNR, UTP
Firmware: URL

Features

  • Support HDCVI/Analog/IP Video input
  • H.264 dual-stream video compression
  • HCVR72A04/72A08/78A16A-S3: All channel 1080P realtime recording
  • 4/8/16 channel synchronous realtime playback, GRID interface & smart search
  • HDMI/VGA simultaneous video output
  • Support 2 SATA HDDs up to 12TB, 2 USB2.0 (8/16CH 1 USB3.0)
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Dahua PTZ dome camera
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Compression

Firmware

You can update your device with the DVR Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

1. Apply this update to your system: Click Here To Download


Firmware Changelog

  • Build Date: 3/7/2017
  • English, French, Spanish optional,English default,NTSC
  • 1. Channel access OSD prompt function
  • 2. Added fan and chassis temperature data display
  • 3. Optimize coaxial control protocol
  • 4. Support more analog front end
  • 5. Optimize digital channel access
  • 6. 5X32 cascade equipment noise reduction processing
  • 7. Fix problem of TVI1.0 can not be identified

Front Panel

HCVR42XXA-S2/ HCVR4216AN-S2/ HCVR52XXA-S2/HCVR5216AN-S2/ HCVR720XA-S2 Series Front Panel

HCVR42XXA-S2HCVR4216AN-S2 HCVR52XXA-S2 Front Panel.jpg


Back Panel

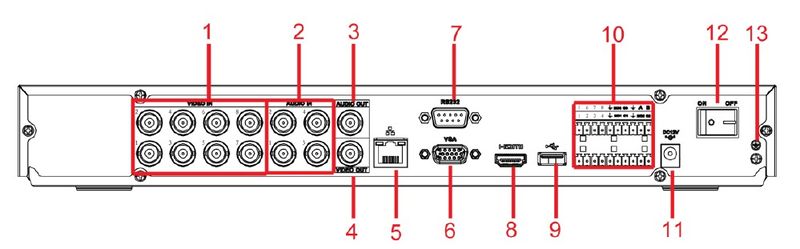

HCVR5204A/HCVR5208A/HCVR7204A Series

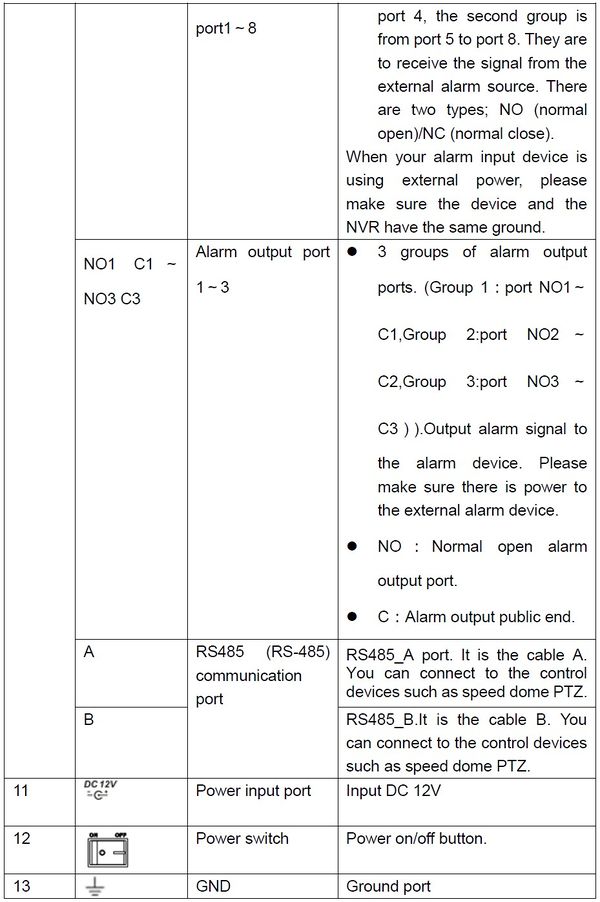

HCVR5204A HCVR5208A HCVR7204A Series Back Panel.jpg HCVR5204A Specs1.jpg HCVR5204A Specs2.jpg


Specifications

Model DH-HCVR72A04A-S3 DH-HCVR72A08A-S3 DH-HCVR72A16A-S3
System
Main Processor Embedded processor
Operating System Embedded LINUX
Video
Input 4 channel, BNC 8 channel, BNC 16 channel, BNC
Standard Analog NTSC/PAL
HDCVI 1080P/720P HDCVI Camera
IP 4+2 up to 5Mp 8+4 up to 5Mp 16+8 up to 5Mp
Audio
Input 4 channel, RCA
Output 1 channel, RCA
Two-way Talk Reuse audio input/output channel 1
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/6 1/4/8/9 1/4/8/9/16
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264/G.711
Record Rate Main Stream: 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~30fps)
Extra Stream D1/CIF/QCIF(1~30fps)
Bit Rate 1~6144Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 8 channel 16 channel 16 channel
Relay Output 3 channel
Playback & Backup
Sync Playback 1/4 1/4/9 1/4/9/16
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Internal SATA burner/Network
Network
Ethernet RJ-45 port (10/100M) RJ-45 port (10/100M/1000M) RJ-45 port (10/100M/1000M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 2 SATA ports, up to 12TB
Auxiliary Interface
USB Interface 2 ports(1 Rear), USB2.0 2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS485 1 port, For PTZ control
General
Power Supply DC12V/4A DC12V/5A
Power Consumption 15W(without HDD)
Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension(W×D×H) 1U, 375mm×285mm×55mm
Weight 2.35KG(without HDD)
