DHI-HCVR74A16L

float

float

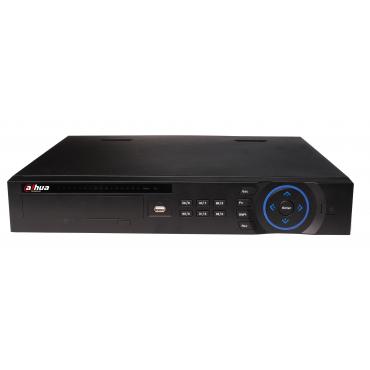

DHI-HCVR74A16L HCVR74A16L.jpg
Series: Super
Compatible Video: Analog, HD-CVI, IP
HD-CVI/Analog Channels: 16
IP Channels: 16 up to 1080p
Video Compression: H.264
Audio Compression: G.711/PCM
Max. Record Rate: 480fps@1080p, 480fps@720p
Audio In: 4
Audio Out: 1
HDD: 4x6TB
Display: HDMI, VGA
eSATA: 1
USB: 3 USB 2.0
DVR Burner: USB/SATA
Alarm In: 16
Alarm Out: 16
Ethernet: 1 Gigabit Port
Remote Login: 128
Dimension: 17.3in x 16.4in x 2.7in
IVS: Yes
Fisheye Dewarp: No
POS: -
Highlights: Smart Play,
P2P, Coaxial Upgrade,
2D/3DNR, UTP, N+N
Firmware: URL

Features

  • Tribrid: Each channel supports HDCVI/Analog/IP Video input
  • 1HDMI/VGA/TV simultaneous video output,1 HDMI separate output
  • HCVR7404/7408/7416L:All channel 1080P realtime recording
  • H.264 dual-stream video compression
  • 4/8 channel synchronous realtime playback, GRID interface & smart search
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Dahua PTZ dome camera
  • Support 4 SATA HDDs up to 16TB, 1 eSATA, 3 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Compression

Firmware Update Instructions

Firmware Update Download

1. Apply this update to your system first: Click Here To Download

2. Apply this update to your system second: Click Here To Download

Firmware Changelog

  • Build Date: 11/25/15
  • English, French, Spanish optional,English default,NTSC

Intelligent Features

Front Panel

HCVR52XXL-V2/ HCVR54XXL-V2 Series

HCVR52XXL-V2 HCVR54XXL-V2 Series Front Panel.jpg HCVR52XXL-V2 HCVR54XXL-V2 Series Specs1.jpg HCVR52XXL-V2 HCVR54XXL-V2 Series Specs2.jpg

Back Panel

HCVR54XXL/HCVR74XXL Series

HCVR54XXL HCVR74XXL Series Back Panel.jpg HCVR54XXL Specs1.jpg HCVR54XXL Specs2.jpg

Specifications

Model HCVR74A04L HCVR74A08L HCVR74A16L
System
Main Processor Embedded processor
Operating System Embedded LINUX
Video
Input 4 channel 8 channel 16 channel
Video Standard HDCVI 1080P/720P HDCVI Camera
Analog NTSC/PAL
IP All channels support 1080P/720P IP Camera
Audio
Input 4 channel, BNC
Output 1 channel, BNC
Two-way Talk 1 channel input,1channel output, BNC
Display
Interface 2 HDMI,1 VGA,1 TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4 1/4/8/9 1/4/8/9/16
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264/G.711
Resolution 1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480)/CIF(352×288/352×240)/QCIF(176×144/176×120)
Record Rate Main Stream: 1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)
Extra Stream CIF/QCIF(1~25/30fps)
Bit Rate 48~6144Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot,
Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 4 channel 8 channel 16 channel
Relay Output 6 channel
Playback & Backup
Sync Playback 1/4 1/4/9 1/4/9/16
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/eSATA Device/Internal SATA burner/Network
Network
Ethernet RJ-45 port (10/100M/1000M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 4 SATA ports(4 HDDs or 3HDDs+1 CD/DVD-RW), up to 16TB, Raid(redundancy)
External HDD 1 eSATA port
Auxiliary Interface
USB Interface 3 ports(2 Rear),USB2.0
RS232 1 port, For PC communication & Keyboard
RS485 1 port RS485 for PTZ control,1 port RS422 for Keyboard
General
Power Supply AC 100~240 V, 50/60 Hz
Power Consumption 40W(without HDD)
Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension(W×D×H) 1.5U, 440mm×416mm×68mm
Weight 6KG(without HDD)
