DHI-HCVR78A16S

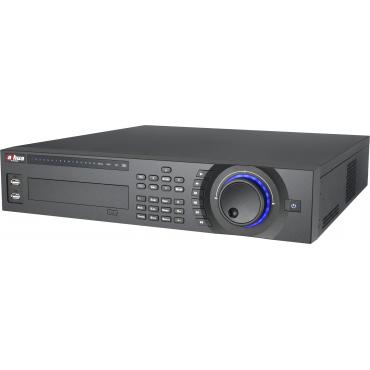

DHI-HCVR78A16S HCVR78A16S.jpg
Series: Super
Compatible Video: hdcvi/cvbs (Auto-detect)
HD-CVI/Analog Channels: 16
IP Channels: 16
Video Compression: H.264
Audio Compression: G.711/PCM
Max. Record Rate: 480fps@1080 / 480fps@720p
Audio In: 16
Audio Out: 1
HDD: 8x6TB
Display: 2HDMI, VGA, TV
eSATA: 1
USB: 4 USB 2.0
DVR Burner: USB/SATA
Alarm In: 16
Alarm Out: 6
Ethernet: 2 Gigabit Ports
Remote Login: 128
Dimension: 17.3in x 18in x 3.5in
IVS: yes
Fisheye Dewarp: -
POS: -
Highlights: Smart Play,
P2P, Coaxial Upgrade,
2D/3DNR, UTP, N+N
Firmware: URL

Features

  • Tribrid: Each channel supports HDCVI/Analog/IP Video input
  • 1HDMI/VGA/TV simultaneous video output,1 HDMI separate output
  • HCVR7804/7808/7816S:All channel 1080P realtime recording
  • H.264 dual-stream video compression
  • 4/8 channel synchronous realtime playback, GRID interface & smart search
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 8 SATA HDDs up to 32TB, 1 eSATA, 4 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Firmware

You can update your device with the DVR Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

1. Apply this update to your system first: Click Here To Download

2. Apply this update to your system second: Click Here To Download

Firmware Changelog

  • Build Date: 11/25/15
  • English, French, Spanish optional,English default,NTSC

Intelligent Features

Front Panel

HCVR58XXS-V2 Series

HCVR58XXS-V2 Series Front Panel.jpg HCVR58XXS-V2 Series Specs1.jpg HCVR58XXS-V2 Series Specs2.jpg

Back Panel

HCVR58XXS/HCVR78XXS Series

HCVR58XXS HCVR78XXS Series Back Panel.jpg HCVR58XXS Specs1.jpg HCVR58XXS Specs2.jpg

Specifications

Model DH-HCVR78A04S DH-HCVR78A08S DH-HCVR78A16S
System
Main Processor Embedded processor
Operating System Embedded LINUX
Video
Input 4 channel 8 channel 16 channel
Video Standard HDCVI 1080P/720P HDCVI Camera
Analog NTSC/PAL
IP All channels support 1080P/720P IP Camera
Audio
Input 4 channel, BNC 8 channel, BNC 16 channel, BNC
Output 1 channel, BNC
Two-way Talk 1 channel input,1channel output, BNC
Display
Interface 2 HDMI, 1 VGA, 1 TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4 1/4/8/9 1/4/8/9/16
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264/G.711
Record
Rate
Main stream 1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)
Extra stream CIF/QCIF(1~25/30fps)
Bit Rate 48~6144Kb/s
Recording Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Recording Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Motion Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 4 channel 8 channel 16 channel
Relay Output 6 channel
Playback & Backup
Sync Playback 1/4 1/4/9 1/4/9/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/eSATA Device/Internal SATA burner/Network
Network
Ethernet 2RJ-45 port (10/100M/1000M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server, SNMP, P2P
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 8 SATA ports(8HDDs or 6HDDs+1CD/DVD-RW), up to 32TB
External HDD 1 eSATA port
Auxiliary Interface
USB 4 ports(2 Rear), USB2.0
RS232 1 port, For PC communication & Keyboard
RS485 1 port RS485 for PTZ control
General
Power Supply AC 100~240 V, 50/60 Hz
Power Consumption 40W(without HDD)
Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
Dimension(W×D×H) 2U, 440mm×460mm×89mm
Weight 6.5KG(without HDD)
