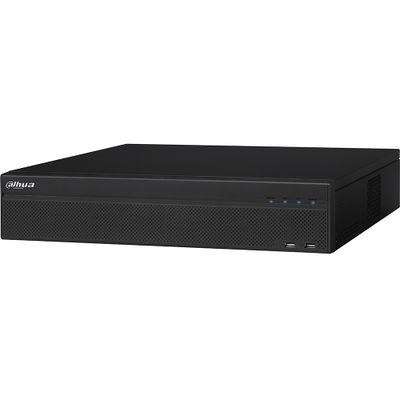

X58A3S


float

float

Features

  • Embedded Intel Multi-core Processor
  • Dual-stream Video Recording with Smart H.264+ Compression
  • Supports HDCVI/AHD/CVBS/TVI/IP Video Inputs
  • 16+48 IP Camera Channels, each channel up to 12 MP
  • Maximum 256 Mbps Incoming Bandwidth, 384 Mbps Forwarding Bandwidth
  • Smart Search and Intelligent Video System
  • Supports HDCVI/CVBS Loop Out

Images

Compression

Firmware Update Download

HD-CVI Tech

Firmware Version V3.218.0000.0.R.20170613
Smart IPC (Front-end Intelligent) Yes
Smart 2.0 Yes
VQA Yes
Back-end Intelligent
IVS Yes
Face Detection Yes
People Counting Yes
Smart Tracking Yes
HDCVI 4MP Fisheye preview Yes
Fisheye dewarp
Local Yes
Web Yes
SmartPSS Yes
Smart264 Encode Yes
Smart265 Encode No
Smart265 Decode Yes for H.265 IPC
Technology
HD-CVI 1080P Yes
HD-CVI 4MP Yes
HD-CVI 4k Yes
HD-TVI 1080P Yes
HD-TVI 3MP Yes
HD-TVI 4k Yes
AHD 1080P Yes
AHD 3MP Yes
AHD 4k Yes

Intelligent Features

Specifications

Technical Specs
  System
  Main Processor Embedded Processor
  Operating System Embedded Linux
  Display
  Interface Two (2) HDMI ports (HDMI 1 output up to 4K, 2K)
    One (1) VGA port
    One (1) 1 TV port
  Resolution 3840 × 2160, 2560 × 1440, 1920 × 1080,
    1280 × 1024, 1280 × 720, 1024 × 768
  Multi-screen Display 1/4/8/9/16/25/36
  Privacy Masking Four (4) Rectangular Zones (each camera)
  On-screen Display Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
  Video Detection and Alarm
  Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
  Video Detection Motion Detection, MD Zones: 396 (22 × 18),
  Video Loss, Tampering and Diagnosis
  Alarm Input 16 Channels
  Relay Output Six (6) Channels
  Playback and Backup
  Playback 1/4/9/16
  Search Mode Time /Date, Alarm, MD and Exact Search
    (accurate to 1 second)
  Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
  Backup Mode USB Device and Network
  Storage
  Internal HDD 8 SATA Ports, up to 8 TB capacity for each disk
  eSATA One (1)
  Auxiliary Interface
  USB Two (2) USB 2.0 ports
    Two (2) USB 3.0 ports
  RS232 One (1) Port for PC Communication and Keyboard
  RS422 One (1) Port for PTZ Control
  RS485 One (1) Port for PTZ Control
  LOOP HDCVI, CVBS
    8 or 16 BNC Connectors
  Audio and Video
  HDCVI Camera Input 16 Channels
  IP Camera Input 16 + 48 Channels, each channel up to 12 MP
  Audio Input: 16 Channels
    Output: One (1) Channel
  Two-way Talk Input: One (1) BNC Microphone Connector
    Output: One (1) BNC Microphone Connector
  Recording
  Compression Smart H.264+, H.264, MJPEG
  Resolution 4 MP, 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF
  Record Rate
  Main Stream CVI/AHD:
    1st and 9th channels: 4 MP at 1/16 to 30 fps
    Other Channels: 4 MP at 1/16 to 15 fps
    CVI/AHD/TVI: 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 1/16 to 30 fps
  Sub Stream 960H/D1/CIF/QCIF at 1/16 to 30 fps
  Bit Rate 1 Kbps to 12288 Kbps per Channel
  Record Mode Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
  Record Interval 1 to 60 minutes (default: 60 minutes),
    Pre-record: 1 to 30 s,
    Post-record: 10 to 300 s
  Network
  Interface Two (2) RJ-45 Ports (1000 Mbps )
  Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS)
  Maximum User Access 128 Users
  Mobile Operating System IOS, Android
  Interoperability ONVIF 2.4.1, CGI Conformant
  Electrical
  Power Supply 100 to 240 VAC, 50/60 Hz
  Power Consumption < 40 W, without HDD
  Environmental
  Operating Conditions -10° C to +55° C (+14° F to +131° F), 86 to 106 kpa
  Storage Conditions 0° C to +50° C (+32° F to +122° F), 0 to 90% RH
  Construction
  Dimensions 2U, 440.0 mm x 455.10 mm x 94.90 mm
    (17.30 in. x 17.90 in. x 3.70 in.)
  Net Weight 8.24 kg (18.17 lb), without HDD
  Gross Weight 9.48 kg (20.90 lb), without HDD
  Installation Desktop or Rack-mount Installation
  Certifications
  Safety Complies with UL Standard
  Electromagnetic Compatibility (EMC) FCC: VFHKEM1612001677IT
    CE: SHEM161100753101ITC
  Intelligence
  IVS triggers an alarm and takes a defined action for the following events:
  Standard Features Tampering with the camera.
    Error writing to an onboard Micro SD card.
    Error sending or receiving data over the network.
    Unauthorized access to the camera.
  Premium Features
  Motion An object moves through any part of the scene.
  Tripwire A target crosses a user-defined line.
  Intrusion A target enters or exits a defined perimeter.
  Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
  Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
  Advanced Features
  Facial Detection Detects and captures a snapshot of human face in a defined area within a scene.
